Clausing 1401 Engine Lathe — 15" x 48"

Clausing engine lathes support four threading systems: inch (imperial), metric, diametral pitch, and module pitch. The universal gearbox on the C-Series covers a comprehensive range across all four systems. The 8044VSJ offers 73 inch pitches (2–84), 51 metric pitches (0.2–14 mm), 27 module pitches, and 27 diametral pitches (8–72).

Yes. Both the C-Series and 8044VSJ feature a removable gap plate that allows large face plates to be mounted on the spindle nose, significantly increasing the maximum swing capacity. The 8044VSJ offers a 23" swing in the gap versus 15.75" over the bed, and C-Series models scale up to 70" swing over bed on the largest configurations.

The Clausing C-Series engine lathes include a one-year warranty backed by the Clausing Service Center. The 8044VSJ variable speed lathe additionally includes a 4-year parts and labor warranty specifically covering the AC inverter drive. All models are supported by a service center stocking over 80,000 parts with 95% of orders shipped within 24 hours.

Clausing engine lathes require 3-phase power at 230/460 volts. Spindle motor power ranges from 3 hp on smaller C-Series models up to 50 hp on the largest configurations, with the 8044VSJ rated at 10 hp. Prospective buyers should confirm their facility's electrical supply before ordering to ensure compatibility with the selected model.

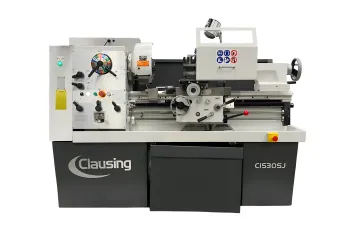

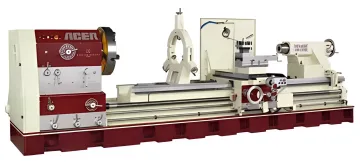

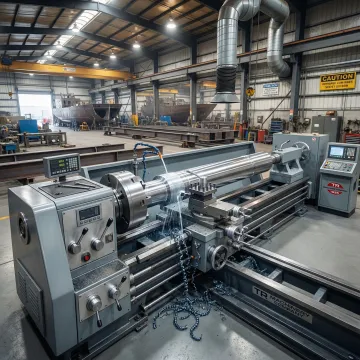

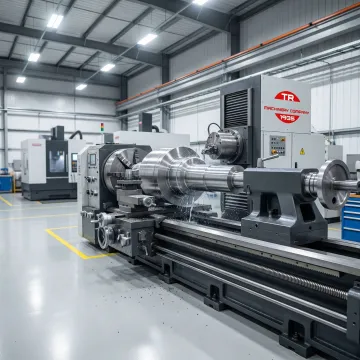

Clausing engine lathes are used across a wide range of industries including oil field and oil country machining, shipbuilding and marine fabrication, power utilities, job shops, and general metalworking and manufacturing. Their rugged construction, wide swing range, and comprehensive threading capability make them adaptable to heavy-duty and precision production environments alike.

Yes. T.R. Wigglesworth Machinery Co. offers installation services and operator training for Clausing engine lathes. Ongoing technical support is available via phone and on-site visits from qualified technicians. These services ensure machines are commissioned correctly and operators are equipped to get full productivity from the equipment from day one.
