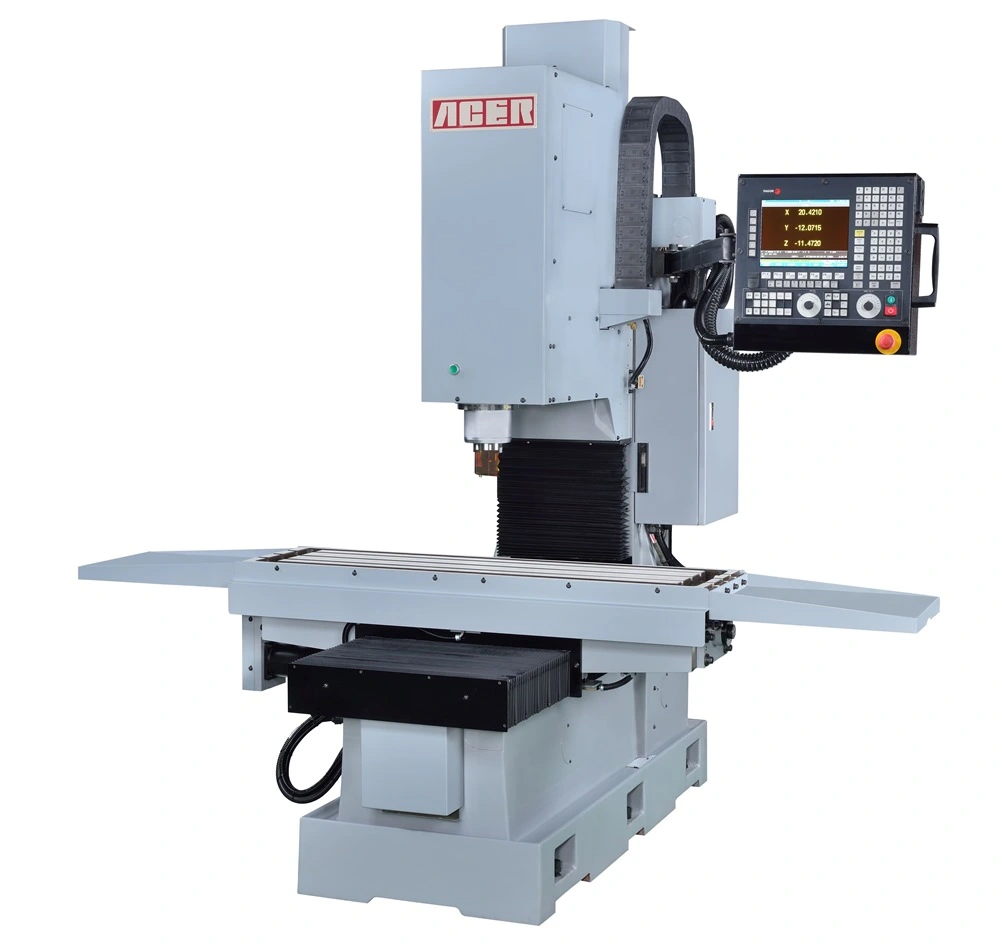

ACER RIGID HEAD CNC BED MILL 1454-II BEDTYPE MILLING MACHINE

THE PACKAGE INCLUDES:

* ACER 1454-II "RIGID HEAD" BED-MILL
* "FAGOR" 8055i/FL-MC 3 OR 4-AXIS CNC CONTROL
* AUTO LUBE SYSTEM
* C5 BALL SCREWS AND DOUBLE-END THRUST BEARING SET

ULTRA HIGH QUALITY ACER E-MILL MILLING MACHINE:

* 7.5 HP SPINDLE INVERTER MOTOR
* INFINITE 0 - 6,000 RPM SPEED
* "TOSHIBA" VECTOR TYPE FREQUENCY INVERTER
* PRECISION 4.72" DIAMETER HARD CHROMED QUILL AT HRC 62 DEGREES
* HRC 52 DEGREES HARDENED AND GROUND TABLE
* TURCITE-B COATED SLIDEWAY AND GIBS TO PROLONG MACHINE LIFE
* PRECISION CAT #40 SPINDLE W/ ABEC-7 BEARING
* MEEHANITE CASTING
* AUTOMOTIVE PAINT
* RUGGED 14" X 54" TABLE SIZE
* 1" DIAMETER BALL SCREWS WITH CASTED MOUNTING BRACKETS
* HARDENED & GROUND X,Y, & Z TABLE TOP AND BOTTOM TO HRC 52 DEGREES
* XYZ TRAVEL: 40" X 22.44" X 26.77"
* MAX. LOAD ON TABLE: 1,960 LBS
* MACHINE WEIGHT: 6,605 LBS

FAGOR 8055i/A-MC 3 OR 4-AXIS CONTROL SOFTWARE FEATURES:

* INTERACTIVE ICON BASED CONVERSATIONAL PROGRAMMING SYSTEM
* ONE-SCREEN - ONE OPERATION, FILL IN THE BLANKS & PRESS CYCLE TO START
* NO LIMIT TO THE NUMBER OF PROGRAMS IN MEMORY
* BUILT-IN MINI CAD/CAM SYSTEM
* 11" COLOR TFT LCD SCREEN
* NUMEROUS CANNED CYCLES IN CONVERSATIONAL AN G-CODE
* (3) 36 IN/LB AC BRUSHLESS SERVO MOTORS & DRIVES
* FLASH MEMORY (1 MB FLASH RAM / 512 MB CF); 2GB CF OPTIONAL (POR)
* USB MEMORY PORT STANDARD; ETHERNET OPTIONAL (POR)
* WINDNC (DXF CONVERTER) AND ENGRAVING OPTIONAL (POR)
* SMART Z-AXIS QUILL FOR CNC AND MANUAL MODE WITH SALE-FED DRO FEEDBACK
OPTIONAL (POR)
* FULL CNC PACKAGE INCLUDES BALL SCREWS AND MOTOR BRACKETS FOR ALL AXES
* "FAGOR" 8055i/FL-MC CNC'S GIVE YOU 4TH AXIS CAPABILITY OUT OF THE BOX

SPECIFICATIONS:
HEAD MOVEMENT............................................... FIXED
SPINDLE:
QUILL DIAMETER.............................................. 4.72"
SPINDLE SPEED............................................... 0 - 6,000 RPM
SPINDLE MOTOR............................................... 7.5 HP
TRAVEL:
TRAVEL:
X-AXIS MAX / RAPID FEED..................................... 40" / 200 IPM
Y-AXIS MAX / RAPID FEED..................................... 22.44" / 200 IPM
Z-AXIS MAX / RAPID FEED..................................... 26.77" / 200 IPM
SPINDLE NOSE TO TABLE....................................... 1" - 27.75"
SPINDLE CENTER TO COLUMN SURFACE............................ 21.3"
TABLE:
TABLE SIZE.................................................. 14" X 54"
TABLE LOAD.................................................. 1,960 LBS
APPROX GROSS WEIGHT......................................... 6,605 LBS
APPROX. PACKING DIMENSIONS.................................. 91" X 79" X 97"

OPTIONAL ACCESSORIES:

PROGRAMMABLE RPM
MANUAL PULSE GENERATOR
REMOTE START/STOP SWITCH
HOME POSITION SWITCH FOR HOME & FIXTURE OFFSET
ONE DAY ON-SITE TRAINING (PER DAY + ACCOMIDATIONS EXTRA)
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
T-SLOT COVER
CHIP PAN: 56" (L) X 57" (W) X 8" (H)
REAR SPLASH GUARD SET (RIGHT & LEFT)
TABLE GUARD FOR 14" X 54" TABLE
CLAMPING KITS (52 PCS)
6" MILLING VISE
COOLANT SYSTEM
INSTALLATION FEE FOR INTEGRATING COOLANT SYS TO CNC CONTROL
8" ROTARY TABLE W/ INTEGRATED 4-AXIS DRV & MOTOR (SPCL. ORDER)
TAILSTOCK FOR ROTARY TABLE (SPCL. ORDER)
UPGRADE FREQUENCY INVERTER (440V / 3-PH)
UPGRADE TO TELESCOPIC STEEL WAY COVER

*** ABOVE PRICES ARE BASED ON F.O.B PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
*** MANUFACTURER RESERVES THE RIGHTS TO MODIFY THE DESIGN WITHOUT NOTICE.
