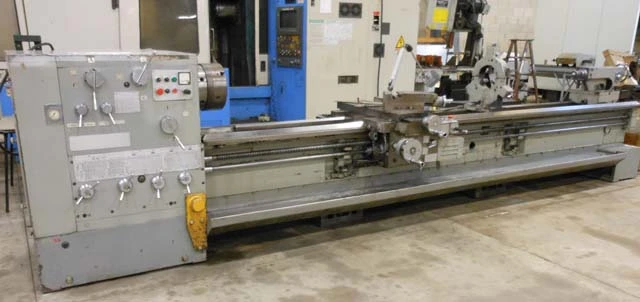

25" x 157" HERCULES GAP BED ENGINE LATHE

MODEL: SPM-630X4000
NEW: 1997

SPECIFICATIONS:
CAPACITIES:
SWING OVER BED......................... 25"
SWING OVER GAP......................... 35"
SWING OVER CROSS SLIDE................. 16"
HEIGHT OF CENTERS...................... 12"
MAX. WEIGHT BETWEEN CENTERS............ 3306 LBS
DISTANCE BETWEEN CENTERS............... 157.480"
CROSS SLIDE STROKE..................... 13"
HEADSTOCK:
SPINDLE BORE........................... 4.1"
SPINDLE NOSE........................... D-A-11 CAMLOCK
SPEED RANGE............................ 16 - 1250 RPM
FEEDS-THREADS:
LONGITUDINAL FEED RANGE (89)........... 0.001 - 0.16 MM/REV
METRIC THREADING RANGE (37)............ 0.5 - 0.80 MM
INCH THREADING RANGE (80).............. 0.64 - 2.5 TPI
WHITWORTH THREAD RANGE (70)............ 160 - 1 PITCH/INCH
MODULE THREAD RANGE (70)............... 0.5 - 40 MODULE
DIAMETRICAL PITCH THREAD RANGE (36).... 160 - 2 DP
TAILSTOCK:
TAPER.................................. 5 MT
QUILL DIAMETER......................... 3.14"
QUILL STROKE........................... 8.86"
GENERAL:
ELECTRICS.............................. 480/3/60

EQUIPPED WITH:
INCH & METRIC THREADING
TAPER ATTACHMENT
POWER RAPID TRAVERSE
WORK LIGHT
8" ROLLER BEARING STEADY REST
THREAD CHASING DIAL
COOLANT
TAILSTOCK WITH LIVE CENTER
12 1/2" 3-JAW ROHM CHUCK
CHUCK GUARD

SPECIFICATIONS SUBJECT TO VERIFICATION
