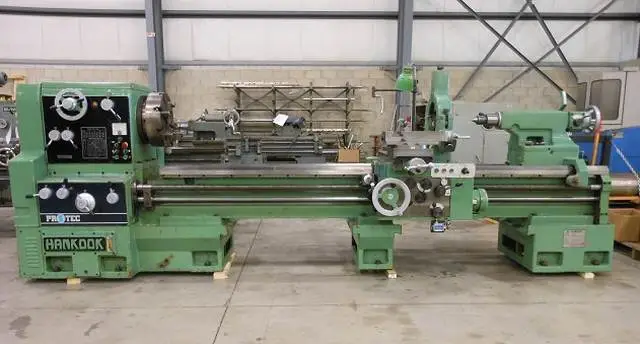

28" X 98" HANKOOK HEAVY DUTY GEARED HEAD GAP BED ENGINE LATHE

MODEL: PROTEC-28
NEW: 1989

SPECIFICATIONS:
SWING OVER BED.......................... 28"
SWING OVER CARRIAGE..................... 18 7/8"
SWING OVER GAP.......................... 37 3/4"
LENGTH OF GAP IN FRONT OF FACE PLATE.... 10 5/8"
CENTER DISTANCE......................... 98"
HOLE THROUGH SPINDLE.................... 4 1/8"
TAPER OF SPINDLE HOLE................... METRIC TAPER #120
SPINDLE NOSE............................ D-1-11
SPINDLE SPEED RANGE (12)................ 28 - 1250 RPM
TAPER OF SPINDLE CENTER................. MT #6
MAX. TRAVERSE OF CROSS SLIDE............ 19 7/8"
MAX. TRAVERSE OF UPPER SLIDE............ 7 7/8"
SIZE OF BITE HOLDER..................... 1 1/4" X 1 1/4"
TYPE OF TOOLPOST........................ T-SLOT TYPE
LONGITUDINAL FEED RANGE (48)............ 0.0012 - 0.0644 IPR
CROSS FEED RANGE (48)................... 0.0006 - 0.0322 IPR
METRIC FEED RANGE (27).................. 0.05 - 14 MM/PITCH
INCH THREADS (40)....................... 2 - 56 TPI
MODULE THREADS (21)..................... 0.25 - 7
DP THREADS (35)......................... 4 - 112 TPI
LEADSCREW (DIA. X PITCH)................ 1 3/4" X 4 TPI
DIAMETER OF TAILSTOCK SPINDLE........... 3 35/64"
TAPER OF TAILSTOCK CENTER............... MT #5
MAX. TRAVERSE OT TAILSTOCK SPINDLE...... 77"
MAIN DRIVE MOTOR........................ 15 HP
RAPID FEED MOTOR FOR CARRIAGE........... 1 HP
LUBRICATION PUMP MOTOR.................. .15 HP
LENGTH OF BED........................... 157 3/4"
WIDTH OF BED............................ 19 5/8"
APPROX. WEIGHT.......................... 9600 LBS
APPROX. MACHINE DIMENSIONS.............. 14' L-R x 5' F-B x 5' H
ELECTRICS............................... 220/3/60

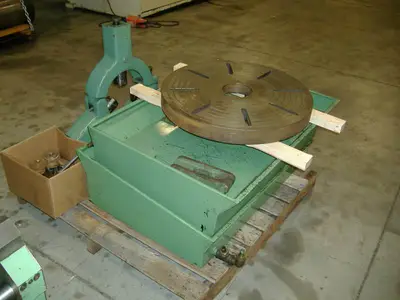

EQUIPPED WITH:
15" 4-JAW CHUCK
26" FACEPLATE
TAPER ATTACHMENT
POWER RAPID TRAVERSE
(2) STEADY RESTS

SPECIFICATIONS SUBJECT TO VERIFICATION
