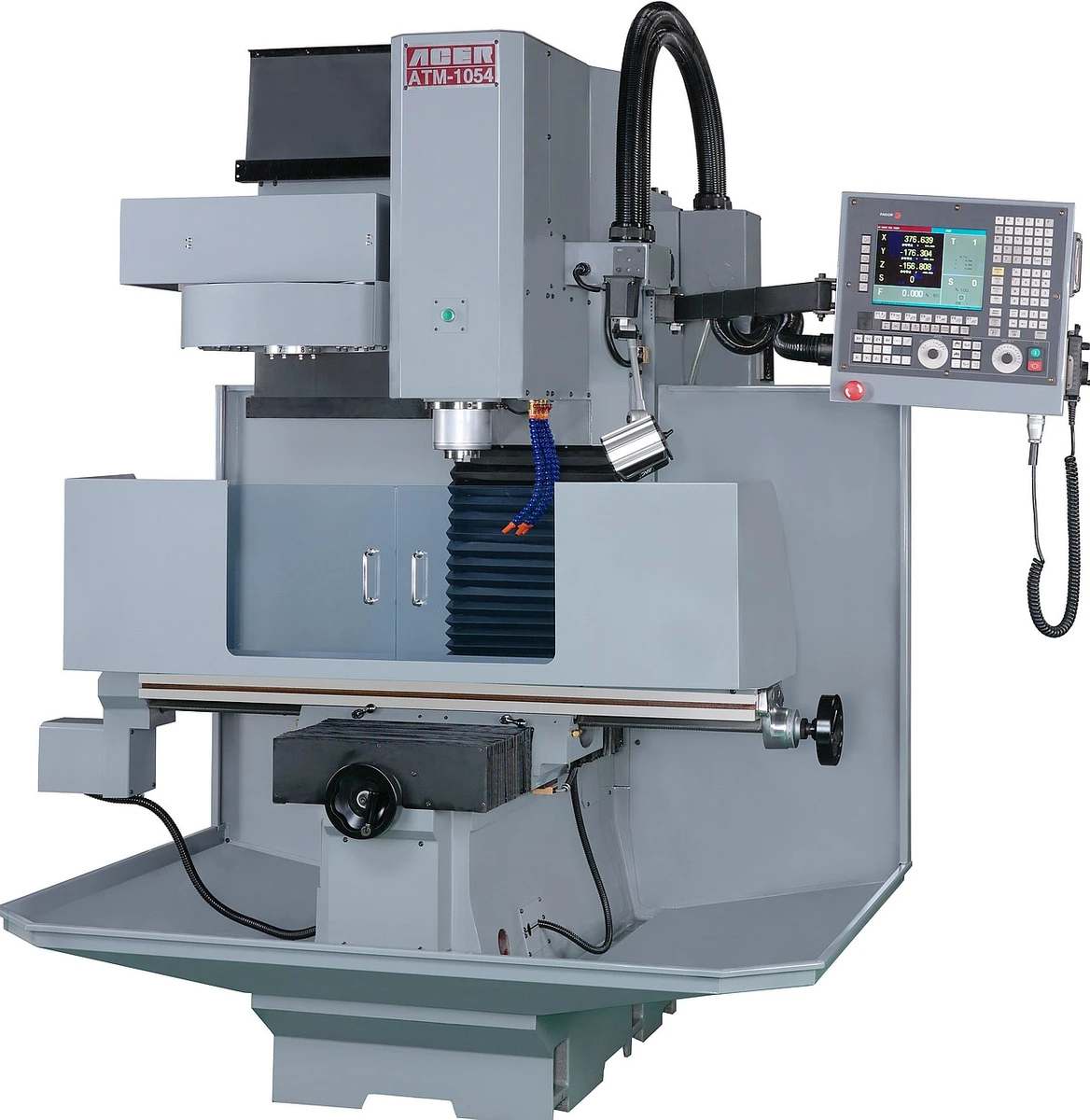

New Acer 1054-II CNC Bed-Mill w/ Rigid Head & Fagor 8055i

Specifications:
Table:
• Table Size....................... 10" x 54"
• T-Slots.......................... 3 x 5/8"
• Table Load....................... 1320 LBS
Travel:
• X Axis/Rapid Feed................ 31.5 / 200 IPM
• Y Axis/Rapid Feed................ 20" / 200 IPM
• Z Axis/Rapid Feed................ 20.87 / 200 IPM
• Spindle Nose to Table............ 5.31" ~ 25.39"
• Spindle Center to Column Face.... 23.62"
Spindle:
• Quill Diameter................... 4.72"
• Spindle Taper.................... CAT #40
• Spindle Speed High/Low RPM....... 0~6000
Motor:
• Spindle.......................... 7.5 HP
• X Axis Servo Motor............... DC 31.3 IN-LB
• Y Axis Servo Motor............... DC 31.3 IN-LB
• Z Axis Servo Motor............... DC 31.3 IN-LB
• Coolant Pump HP (optional)....... 1/8
• Lubrication Pump................. 80 Watts
ATC Tool Dimension & Capacity:
• Tool Total Length:.......... 8.66" (300mm)
• Tool Maximum Width:.......... 2.95" (75mm)
• Tool Total Weight:.......... 15 lbs (8kgs)
• Total Tool Number:.......... 8, 10, or 12
Power & Air Requirements:
• Control..........230V/3P/50A
• Machine.......... 12.5K
• Pneumatic Pressure (Air Req.):.......... 85psi (6kg/cm²) min.
Dimensions:
• Max Height:.......... 97.64" (2480mm)
• Height from Table Top to Bottom of Bed:.......... 35.43" (900mm)
• Width of Machine Including Table:.......... 76.44" (1945mm)
• Overall Length with Electrical Door Closed:.......... 80.71" (2050mm)
• Overall Length with Electrical Door Open:.......... 103.15" (2620mm)
• Overall Width with Full Table Traverse:.......... 108.27"(2750mm)
• Footprint of Machine inches:.......... 76.44" x 78.74" x100"
• Footprint of Machine metric:.......... 1945 x 2000 x 2540mm
• Max. Machine Operation Space:.......... 109" x 104" x 98" (275 x 262 x 248cm)
• Packing Dimension Approx (X x Y x Z w/balancing block):........... 86.22" x 75.2" x 99.61" (219 x 191 x 253cm)
• Net Weight Approx.:.......... 5896 lbs (2680 kgs)
• Gross Weight Approx.:.......... 6235 lbs (2834 kgs)
Maximum Working Capacity in Mild Steel:
• Drilling Max Capacity:.......... Ф1-1/2" (38mm)
• Milling Max Capacity:.......... 5mm x Ф100mm
• Boring Capacity:.......... Ф6.3" (160mm)
• Tapping Max Capacity:.......... 1.18" (30mm)

Standard Features:
• Fagor 8055i/FL-MC 3 or 4-Axis CNC Control
• Auto Lube System
• C5 Ball Screws and Double-End Thrust Bearing Set
• Cat #40 Taper Spindle w/ ABEC-7 Bearings
• Hardened and Ground 3-Axes Guideways and Table Surfaces to HRC 52
• "Turcite-B" Coated Slideway and Gibs Prolong Machine Life
• 1" Diameter Ball Screws with Cast Mount Brackets
• Meehanite Casting
• Automotive Paint

Rigid Head Features:
• 7.5 HP Spindle Inverter Motor
• Infinite 0~6000 RPM Speed AC Frequency Drive
• Rigid Head (Slideway Head) With Precision 4.72 Diameter Hard Chromed Quill at HRC 62 Degrees

Control Software Features:
• Interactive Icon Based Conversational Programming System
• One Screen - One Operation, Fill In The Blanks & Press Cycle To Start
• No Limit To The Number Of Programs In Memory
• Built-In Mini Cad-Cam System
• 11" Color TFT LCD Screen
• Numerous Canned Cycles In Conversational And G-Code
• (3) 31 IN/LB. DC Servo Motors & Drives
• Flash Memory (1 Mb Flash Ram / 512 Mb CF)
• USB Memory Port Standard

CNC Optional Accessories
• Flash Memory 2GP CF
• Ethernet
• Programming Spindle
• Manual Pulse Generator
• Remote Start / Stop Switch
• Home Position Switch For Home and Fixture Offset
• One Day On-site Program Training (Accommodation and Transport is not included)

Optional Accessories
• 12" Rotary Table (Vertical & Horizontal)
• T-Slot Cover
• Chip Pan
• Rear Splash Guard Set (Left & Right)
• Installation Fee On Rear Splash Guard And Chip Pan
• Table Guard
• Installation Fee For Table Guard
• 6" Rotary Table W/ Integrated Drive & Motor
• 8" Rotary Table W/ Integrated Drive & Motor
• 10" Rotary Table W/ Integrated Drive & Motor
• Coolant System
• Installation Fee For Integrating Coolant System To CNC Control
• Halogen Work Light Or Led-L95 Work Light
• Upgrade To 440V / 3PH Transformer
