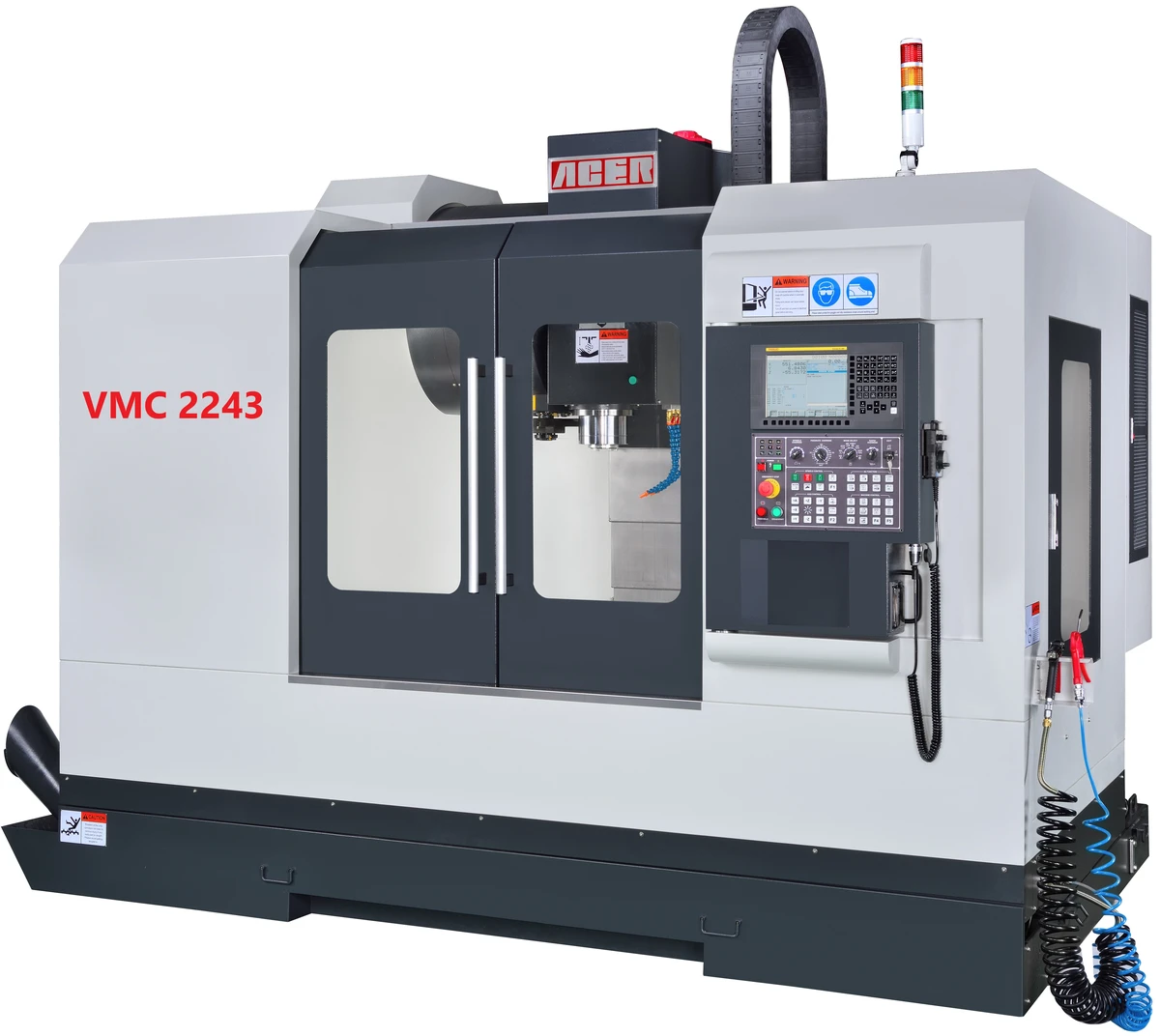

43"X, 23"Y, 24"Z, ACER VMC-2243,
Features:
Fanuc 0i-MF 3 or 4-Axis CNC Control
24-Pocket Arm Type Side Mount Automatic Tool Changer
Central Automatic Lube System
C3 Ball Screws and Double-End Thrust Bearing Set
Air Gun with Rear Flood Coolant System
Halogen Work Light
Full Enclosure Splash Guard
High Speed Machining Function
Linear Guide Ways on X, Y, Z-Axes
Machine Specifications:
Travel:
Max. Travel for X Axis....................... 43.31"
Max. Travel for Y Axis....................... 23.62"
Max. Travel for Z-Axis....................... 24.02"
Spindle Nose to Table........................ 4.92" - 28.54"
Table:
Table Size (L x W)........................... 47.24" X 23.62"
Max. Table Load.............................. 2640 Lbs
T-Slot (Center x Width X No.)................ 3.94" x 0.71" x 5
Spindle Center to Slideways of Column........ 22.44"
Spindle:
Tool Shank................................... CAT #40
Spindle Motor................................ 10HP/15HP
Spindle Speed................................ 10,000 RPM
Spindle Servo Drive.......................... Timing Belt
Spindle ID................................... 2.56"
Feed Rate:
X/Y/Z Rapid Travel........................... 1181.1 IPM
Cutting Feed Rate............................ 0 - 400 IPM
X/Y/Z Servo Motor............................ 4.02/5.35/5.36 HP
Leadscrew Diameter X, Y, Z................... 1.5748"
Linear Guideway Width X, Y, Z................ 1.77"/1.77"/1.77"
Servo Drive X, Y, Z.......................... Direct Drive
ATC System:
Tool Capacity................................ 24-Pocket Arm Type
Max. Tool Diameter When Alternate Number
w/ Tool...................................... 5.12"
Max. Tool Diameter........................... 3.74"
Max. Tool Length............................. 11.81"
Max. Tool Weight............................. 17.6 Lbs
Tool to Tool................................. 5.5 Sec
Chip to Chip................................. 7.5 Sec
Magazine Tool Selection...................... Bi-Directional
Machine Accuracy:
Positioning Accuracy......................... +/- 0.0002"
Repeatability Accuracy....................... +/- 0.00012"
Floor Space:
Machine Height............................... 111.89"
Floor Space.................................. 111.89" x 86.62"
Machine Weight............................... 14,300 Lbs
Other:
Air Requirement.............................. 85 PSI
Power Requirement............................ 40.23 HP
Standard Accessories (Included):
Chip Auger Halogen Work Light
Full Enclosure Splash Guard Steel Way Cover
High Speed Machining Function Alarm Light for Machine in Op.
Air Gun w/ Rear Flood Coolant System Auto Lube. System
Control Software Features:
*Nano CNC System combined with precise nano calculation and leading-edge servo
technology.
*High Quality Machining achieved by coordination between "High Precision
Operation in Nanometers" and "State-of-the-Art Servo Technology"
*Smart Overlap enables a shorter cycle time for machining parts.
*Various types of enhanced diagnostics functions improve maintainability so
that the cause of trouble can be identified quickly: Unexpected system down
can be prevented by predictive trouble detection and warning indication.
*Ethernet (100 Mbps) is embedded on the CNC main board, and the CNC can be
connected to a personal computer to transfer a variety of NC data and monitor
CNC status.
*Customizable functions allow machine tool builders to customize their own
machine tools.
*Full CNC package includes Ball Screws & Motor Brackets for all axes.
*** Convenienve of a PC in the CNC
Price:
Acer VMC-2243 CNC Machining Center w/ 3-Axis Control
Optional Accessories (Additional):
One Day On-Site Program Training
20 Bar Thru Spindle Coolant
Upgrade Spindle to 12,000 RPM
Upgrade Spindle to 18,000 RPM
Upgrade Spindle to 24,000 RPM
Chip Conveyor (Chain-Type)
Tool & Work Piece Probe
Oil Skimmer
Extra M Codes (8 of them)
8" Rotary Table w/ Integrated Drive & Motor
10" Rotary Table w/ Integrated Drive & Motor
Tailstock for Rotary Table
8" 3-Jaw Chuck for Rotary Table
Upgrade to 440 Voltage Transformer
***For 4th Axis Ready, additional Drive & Motor Only
***Above prices are based on port of entry
***Prices and designs are subject to change without notice
***Manufacturer reserves the right to modify the design without notice
***Acer covers standard one-year limited warranty on mechanical parts and 90
days on electrical parts. The CNC part of the warranty is determined by the
CNC Control Manufacturer.
