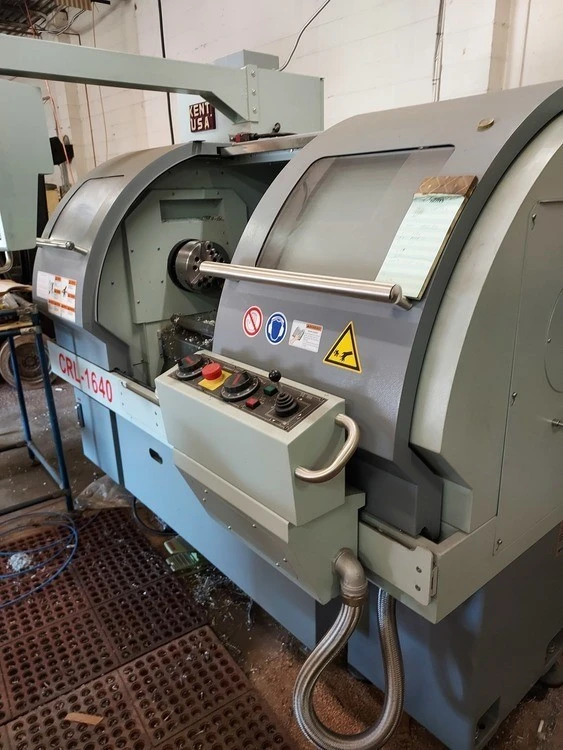

Kent USA CRL-1640 Precision Teach Lathe

Specifications:

Swing Over Bed........................... 16"
Swing Over Cross Slide................... 9.05"
Distance Between Centers................. 35"
Width of Bed............................. 10.23"
Spindle Nose............................. Cam D1-6
Spindle Bore............................. 2.066"
Spindle Taper............................ M.T. #6
Spindle Speeds........................... 25-3000 RPM (2 Steps)
Longitudinal Travel (Z-Axis)............. 33"
Cross Slide Travel (X-Axis).............. 8.5"
Z-Axis Ballscrew Diameter................ 1.259", 10mm Pitch
X-Axis Ballscrew Diameter................ 0.787", 5mm Pitch
Z-Axis Rapid Traverse Speed.............. 295"/min
X-Axis Rapid Traverse Speed.............. 196.8"/min
Tailstock Quill Diameter................. 2.283"
Tailstock Quill Travel................... 5.5
Tailstock Taper.......................... M.T. #4
Spindle Motor............................ 7.5hp
AC Servo Motor (Z-Axis).................. 1.13hp
AC Servo Motor (X-Axis).................. 0.6hp
Net Weight............................... 4,730lbs
Gross Weight............................. 5,830lbs
Packing Dimension........................ 125" x 79.7" x 86.6"

10 HP Peak Fagor Servo Spindle motor
Manual and CNC mode
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
2 speed semi-automatic gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
25-3000 RPM range; electronic handwheels
Auto Lube system with metered Check valves
Automatic 4 position electric Turret
