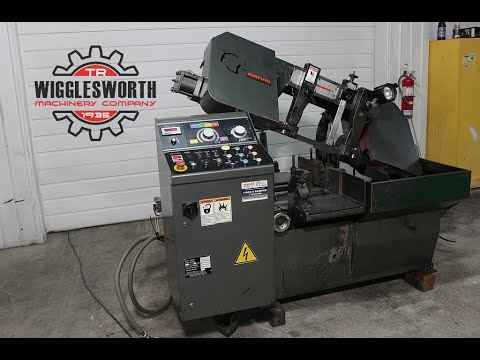

Marvel-Spartan Model: PA-10/3 Horizontal Band Saw

Specifications:

Table Height.................................. 27"
Rect-cap(H)................................... 8"
Rect-cap(W)................................... 12"
Rounds Cap.................................... 10"
Power......................................... 5 HP"
Blade Speed................................... 60-330 SFPM
Blade Width................................... 1.25"
Blade Thickness............................... 0.035"
Blade Length.................................. 138"
Hydraulic Motor............................... 1 HP
Machine Weight................................ 3400 lbs.
Work Load Capacity............................ 5600 lbs.

Features & Equipment

Standard Features:
Split Front Vise Jaws: Hold the work securely on both sides of the blade
minimizing vibration and burs, while also helping to reduce the remnant
length to as little as 2”. The full stroke hydraulic vises provide
ease of operation and simplify set up.

Fast Approach Device: Reduces cycle time by positioning the saw frame
at the correct work height.

Operator Control Panel: Conveniently located at the front of the machine providing the
operator with a clear view of the cutting area

Automatic Feed Table
16" stroke multi-index capable
2) free standing adjustable roller work rests
Coolant System
Halogen Work Light
Vertical Roller Bundling Guides
1) New additional Saw Blade
1) New additional transmition Belt
Levelling Pucks
