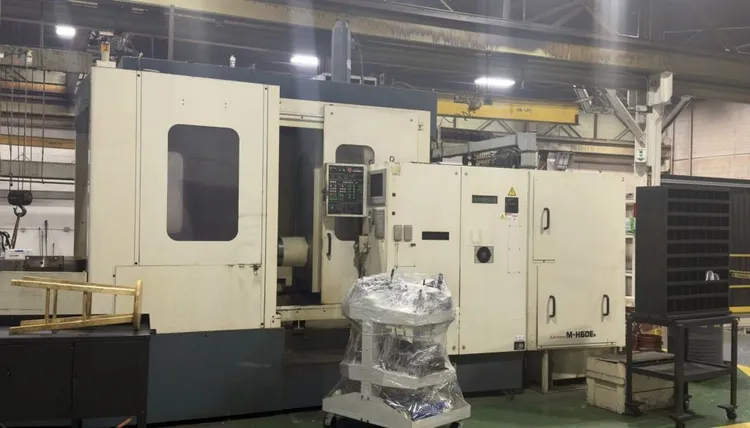

MITSUBISHI M-H60EN Horizontal Machining Center

Model: M-H60EN
Year of manufacture: 2000

35/40 HP High Performance Horizontal Machining Center w/ APC and Opt B-Axis Rotary Table
Machine Type: Machining Center
Num. of Axes: 3
Operation Type: CNC
CNC Brand: Meldas 610
CNC Brand Opt: Fanuc 18iM

Table/Work Support
Table Size L x W (in.): 24.800(L) x 24.800(W)
Max Workpiece Weight (lbs): 2,640
Support Index Table: Standard
Support Rotary Table: Optional

Spindle(s)
Direction: Horizontal
Taper: # 50
Top RPM: 6,000
Top RPM Opt: 12,000
HP (30 min rating): 35.00
HP Opt: 40.00

Tooling
Tool Carrier: ATC
Num. Tools: 40
Num. Tools Opt: 120
Tool Change Time (sec): 4.00
Tool Change Chip Time (sec): 8.00
Pallet Changer Available: Standard
Num. Pallets: 2
Num. Pallets Opt: 10

Axes And Travels
Num. Axes: 3
Num. Axes Opt: 4
U Axis: None

Travel Max Feed Rate Rapid Traverse
X1 39.400" 1,575 1,575ipm
Y1 31.500" 1,575 1,575ipm
Z1 31.500" 1,575 1,575ipm
B1 360.000°

Features:
Dual pallet shuttle system
Manual pulse generator
Mitsubishi Meldas controls

Equipt with:
Coolant system with chip conveyor

This machine is under power for inspection.
