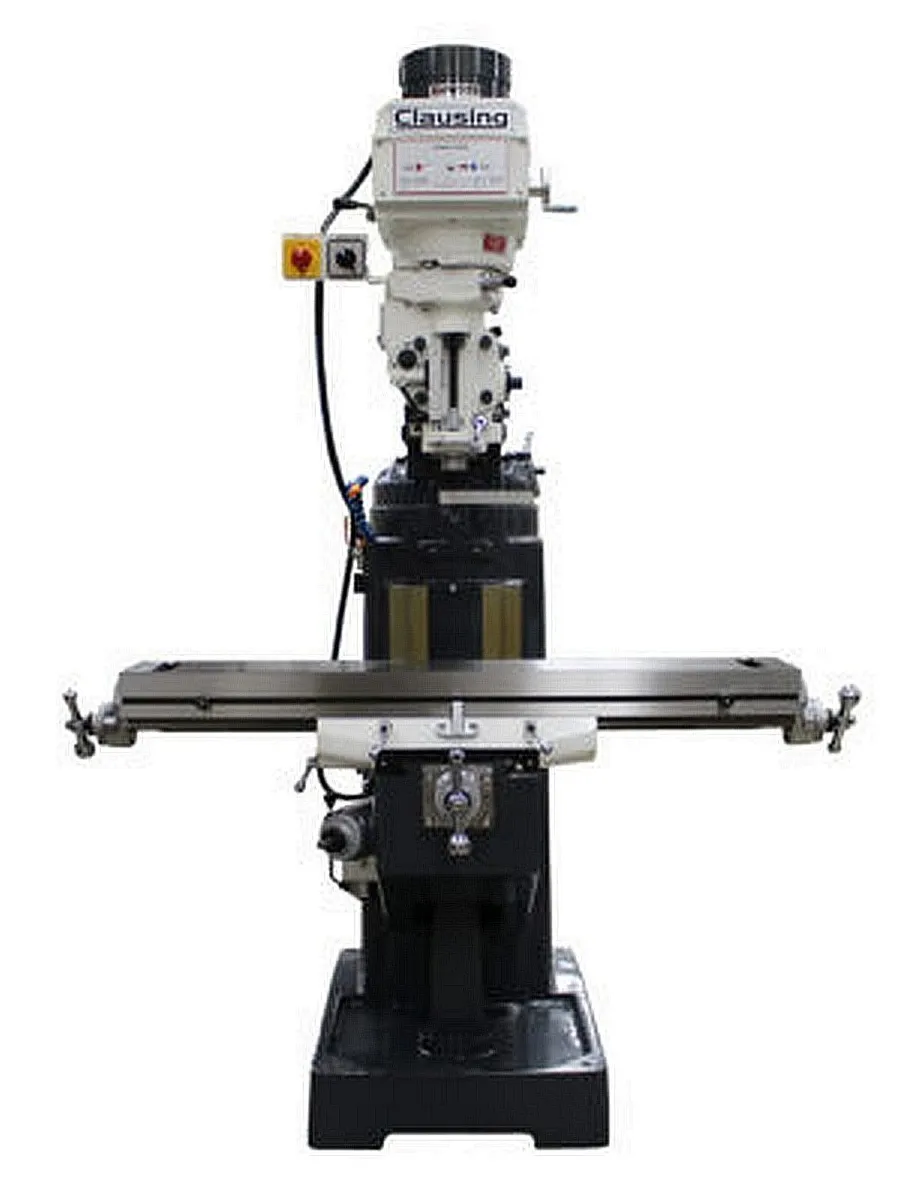

Discover precision with the new Clausing 2VS08 Knee Mill. Featuring a 9"x49" table, 3 hp power, and manual variable speed control, this mill delivers on versatility and performance. Ideal for demanding machining tasks with hardened, ground surfaces.
Specifications:
•	Machine Style..........Knee Mill
•	Spindle Speed Control..........Manual Variable Speed
•	Spindle (Hp)..........3
•	Total Amp Draw @208V 3Ph..........11
•	Total Amp Draw @230V 3PH..........10
•	Total Amp Draw @460V 3Ph..........5
•	Table Size (inch)..........9 x 49
•	Number T-Slots..........3
•	T-Slot Width (inch)..........(.638)
•	T-Slot Center Distance (inch)..........2.08
•	Table Way Design..........Dovetail
•	Cross Feed Way Design..........Dovetail
•	Knee Way Design..........Dovetail
•	X Longitudinal Travel Manual (inch)..........38.2
•	Y Cross Travel Manual (inch)..........14.2
•	Knee Travel Manual (inch)..........15
•	Ram Travel Manual (inch)..........18.5
•	Variable Spindle Speed (rpm)..........60 – 4300
•	Variable Spindle Speed Low Range (rpm)..........60 – 500
•	Variable Spindle Speed High Range (rpm)..........550 – 4300
•	Spindle Taper..........R8
•	Spindle quill Travel (inch)..........5
•	Quill Feed (in/rev)..........(.0015/.0031/.006)
•	Quill Diameter (inch)..........3.38
•	Column Turret Diameter (inch)..........14.96
•	Knee Width (inch)..........11.42
•	Column Bearing Length (inch)..........16.54
•	Saddle/Table Bearing Length (inch)..........19.88
•	Ram/Turret Bearing Length (inch)..........16.14
•	Ram Length (inch)..........28.94
•	Table Load (lbs.)..........665
•	Machine Weight (lbs.)..........2,100
•	Voltage Required..........208/230/460
•	Phase..........3
•	Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
•	Shipping Weight (lbs.)..........2,500
Machine Features:
•	Manual variable speed with sheave pulley drive
•	9” x 49” Table surface
•	Meehanite Castings for superior rigidity and wear resistance
•	Hardened and Ground X,Y,&Z ways
•	X/Y ways coated with Turcite B for excellent wear resistance
•	Column and Knee way covers
•	Ground T-slots to provide reference edge for workpiece positioning
•	Hardened and ground table surface, and spindle
•	Chromed and ground quill
•	Chromed and double nut leadscrews for backlash compensation
•	ABEC7/CP4 Spindle bearings
•	Coolant System w/pump and switch
•	Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
•	Lever operated manual rapid quill movement
•	Hand wheel for fine quill feed
•	Adjustable automatic feed disengagement for quill feed
•	Micrometer depth stop for quill
•	Reversing switch for clockwise or counter clockwise operation of spindle
•	Hand operated spindle brake
•	One shot way lube system
•	A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
