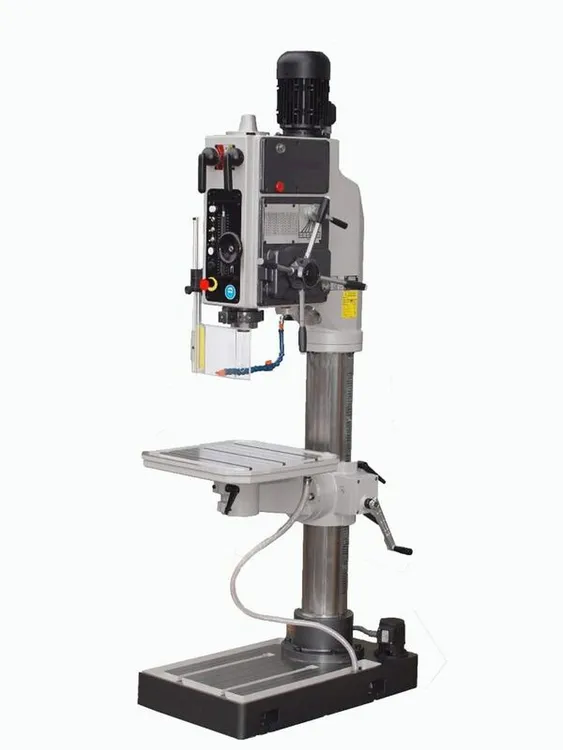

New 2025 Clausing Ibarmia B40 Iberdrill – 28.34” Floor Drill Press Gear Head Drive, Adjustable Rotating Worktable

Machine Style Floor Drill W/Adjustable Table
Drive Type Gear Head Drive
Number of Speed Steps 9
Spindle Speeds (RPM) 73 – 103 – 149 – 232 – 325 – 472 – 695 – 976 – 1415
Column to Spindle Center (in) 14.17
Spindle Nose 4MT
Spindle Travel (in) 7.87
Quill Feed Electromagnetic Clutch
4 Feed Ranges (in/rev) 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 5.51 / 30.71
Column Diameter (in) 7.09
Adjustable Table Surface (in) 18.9 x 22.1
Worktable T-Slots (in) 1/2
Base Size (in) 31.9 x 21.3
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 3
Machine Weight (lbs.) 1,345
Machine Dimensions (WxDxH in) 22 x 38 x 92.4
Shipping Weight (lbs.) 1,532
Shipping Dimensions ships laying down (LxWxD in) 98.5 x 24 x 48

Machine Features:

Gear head drive with shift levers on the face of the drill
Gear box lubrication by automatic pump
Hardened and Ground high quality steel gears
3 Hp spindle motor
Built in low voltage electrical equipment
Depth scale and adjustable depth stop
Electromagnetic clutch quill feed system
Adjustable worktable, rotating and tilting
Work light
Manual spindle reversing switch
“RS” Models are equipped with automatic spindle reversing system for tapping
Thermomagnetic motor breaker switch
Machined base with coolant tank
Safety drill guard with microswitch
Automatic tool ejector
Emergency stop button
CE mark
