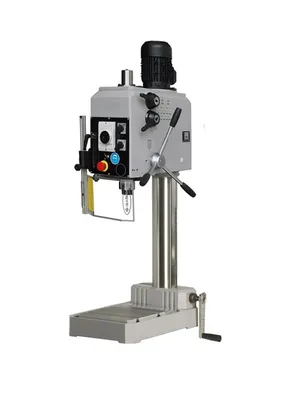

Clausing Iberdrill 19.68” Bench Drill Press Gear Head Drive and Base, 90 – 3360 RPM 8 step gears, 2.44” diameter quill, 3MT taper spindle, 1 ½ hp 2 speed spindle motor, manual quill feed, 1” drill capacity steel, 230/460-volt 3 Phase voltage
Machine Style Bench Drill
Drive Type Geared Head
Number of Speed Steps 8
Spindle Speeds (RPM) 90, 192, 300, 504, 612, 1020, 1740, 3360
Column to Spindle Center (in) 9.84
Spindle Nose 3MT
Spindle Travel (in) 4.72
Quill Feed Manual
Spindle to Work Surface Min/Max. (in) 4.33 / 19.7
Column Diameter (in) 3.94
Adjustable Table Surface (in) NA
Worktable T-Slots (in) 1/2
Base Size (in) 22 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 298
Machine Dimensions (WxDxH in) 20 x 32 x 47.6
Shipping Weight (lbs.) 353
Shipping Dimensions ships laying down (LxWxD in) 57 x 24 x 36
