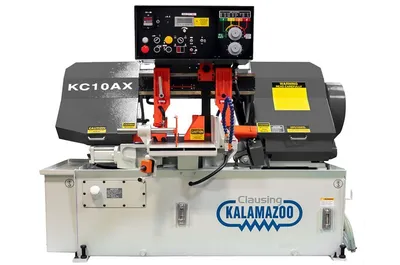

2025 - KC10AX – Clausing Kalamazoo Automatic Horizontal Bandsaw 10” x 11” Max Rectangular Capacity

Machine Style Automatic
Drive Type Infinitely Variable
*Motor 3 Hp *230/460 3phase
Hydraulic Pump Motor 1 Hp
Hydraulic Oil Capacity 10.5 gallons
Band Wheel Dia. 15.75”
Blade Speeds 66-328 fpm Variable speed
Blade Size 1-1/4” x .043” x 138”
Coolant Recirculating
Coolant Capacity 16.8 gallons
90° Cutting Capacity
Round 10”
Rectangular 10” x 11”
Feed Accuracy +\- .004” to .008”
Length or Remnant Material (manual) .59”
Length of Remnant Material (automatic) 1.97”
Minimum Cut Thickness .354”
Bundle Cutting Width (Optional) 6.1” x 7.87”
Bundle Cutting Height (Optional) 1.97” to 4.72”
Feed Length/Index 15.75”
Max. Feed (9 times) 141.75”

Machine Features:

Full or semi-automatic operation
Infinitely variable blade speeds
LED blade speed readout
Vise clamps work piece both sides of blade
Hydraulic down feed
Automatic height setting feature
Auto shutoff at end of material or after preset number of cuts
Front-mounted digital length gauge
Blade breakage/stoppage switch
110v. control circuit
Overload protection
Recirculating Coolant System
Shuttle Vise
Hydraulic Blade Tension System
(1) General Purpose Bi-metal Blade
Flushing Hose for Cleanup
Tool Kit
Operator’s Manual
2 Year Limited Warranty
