63" YOU JI YV 1600 ATC
Have one to sell?
ConditionUsed
1 available

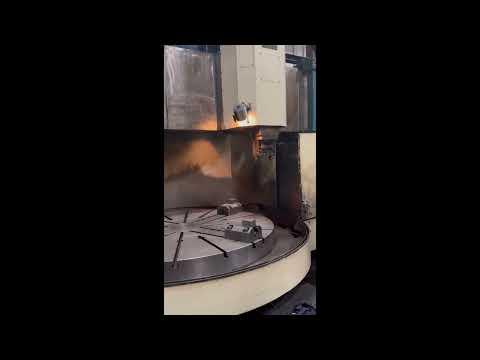

1999 YOU JI YV 1600 ATC vertical CNC boring mill with 63” table diameter. Equipped with 60 HP motor, 250 RPM capacity, 79” swing, 47.24” working height, and ATC for 12-24 tools. Ideal for demanding machining tasks. Used condition.
2015: Rebuilt Ram and Cross Rail, Gibs
"as is, where is, loaded on truck"
Specification Value
Table Diameter 63″
Maximum Swing 78.74″
Maximum Turning Diameter 70.866″
Maximum Cutting Height 47.24″
Z-Axis (Vertical Ram Travel) 35.433″
X-Axis (Horizontal Ram Travel) 62.008″
Y-Axis (Cross Rail Vertical Travel) 31.496″
Ram-to-Table Max Distance 60″
Rail Travel 31.5″
Table Load Capacity 17,637 lbs
Main Spindle Motor Power 49–60 HP
Optional Spindle Motor Upgrade Up to 100 HP
Spindle/Table Speed Range 1–250 RPM
Tool Magazine (ATC) 12–24 Tools
Machine Weight 60,600 lbs
Overall Machine Dimensions (L×W×H) 220″ × 134″ × 152″
