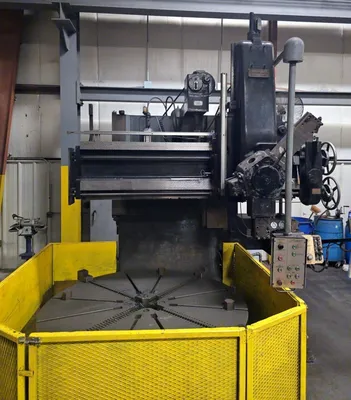

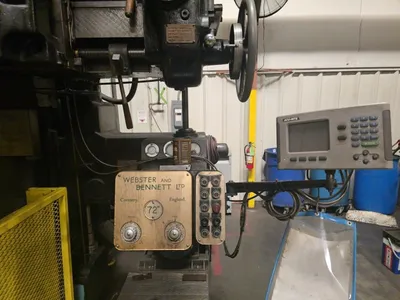

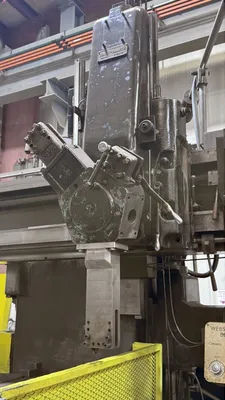

72" Webster & Bennett Elevating Rail Vertical Boring and Turning Machine

Diameter of Chuck...........72"
Admits in Diameter...............84"
Maximum Diameter turned for travel of turret side..........84"
Minimum height under Cross Slide............24"
Admits in height under cross slide when Auto trip is fitted..........20.5"
Maximum height under Cross Slide............48"
Vertical adjustment of Cross Slide..........24"
Maximum height under Turret...........59"
Vertical travel of Turret Slide...........38"
When diameter of bore exceeds..............32"
-Maximum length which can be bored is.............38"
When diameter of bore does NOT exceed............32"
-Maximum length which can be bored is ............28"
Diameter of spindle bore............ 3.25"
Horizontal feed of turret from chuck centre outwards............51.5"
Diameter of turrett holes...........3"
Distance from chuck to junction face...........30.5"
Distance from chuck centre to front of cross slide............19.125"
Number of speeds...............12
Number of feeds.................12
Total heigh space required............163"
Floor space - Front...........120"
- Side...........152"
Minimum height for transit purposes.............109"
Approximate weight excluding electrical equipment..........302 cwt / 33821lbs

Features & Equipment

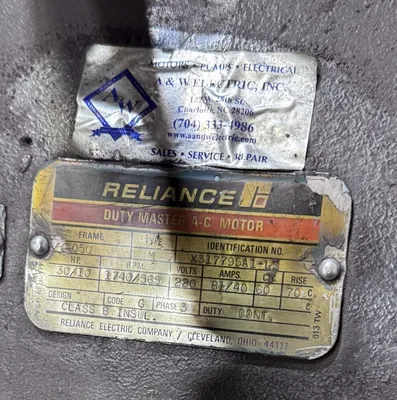

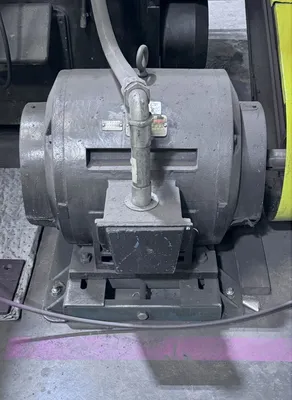

30 H.P. Main Drive Motor

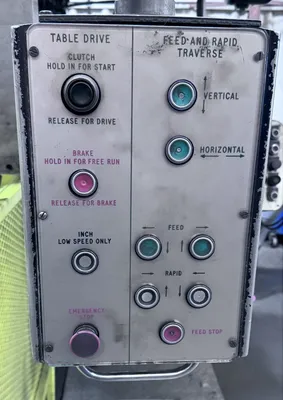

Full pendant Control

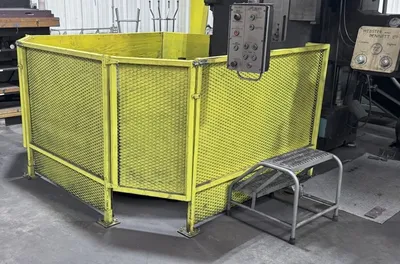

Steel Guarding around Chuck
1) B2 Short Tool
1) B2X Long Flange Tool Holder
1) Custom Super Long Boring Tool Holder

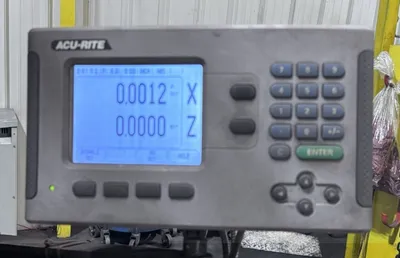

Accurite 2-Axis DRO
4 Chuck jaws
Ratchet handles
