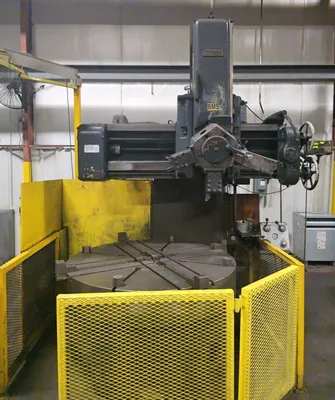

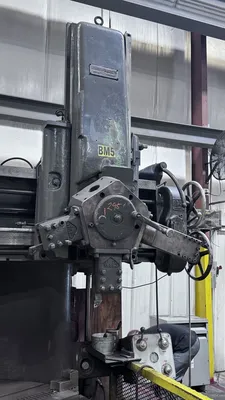

65" Webster & Bennett Vertical Boring and Turning Machine

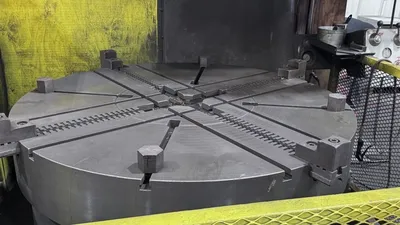

Diameter of Chuck..............65"
Admits in diameter.............75"

Maximum turning diameter:
Type "U" toolholder................61"
Type "B2X" toolholder..............64"

Admits in height under turret.............35"
Admits in height under cross-slide...........24"
Admits in height under cross-slide when Auto. Trip is fitted..........20.5"
Vertical feed of turret.............26"
Maximum length of hole which can be bored is..............24"
when diameter of bore exceeds.............28"
Maximim length of hole which can be bored is.............16"
when diameter of bore does NOT exceed.............28"
Diameter of spindle bore.............3.25"
Horizontalfeed of turret, chuck centre outwards.............40"
Diameter of turret holes..............3"
Total height required--Single or Duplex Mills..............119"
Floor space require-- Front Single Mills............103"
Side Single Mills............130"
Distance from chuck centre to junction face...........30.5"
Distance, chuck centre to front of cross slide...........15.125"
Number of speeds...........12
Number of feeds..............12
Driving pulley speed, R.P.M-- Normal.............1000

Horsepower of main motor (Horizontal foot mounted):
Normal............30

Recommended speed of main motor, approx., R.P.M...........1440
Horsepower of Rapid Power Traverse motor (Vertical Flange mounted)...........3
Recommended speed of ditto, approx.,R.P.M..............1430
Minimum overall height for transit purposes only. Single Mill (Height of vehicle excluded)........105"
Approx. weight (excluding electrical equipment)..........22399lbs

Includes:

Mitotoya Digital readout
Full chip guard
