Victor Cutmaster 102 Plasma Cutter
Have one to sell?
ConditionUsed
1 available

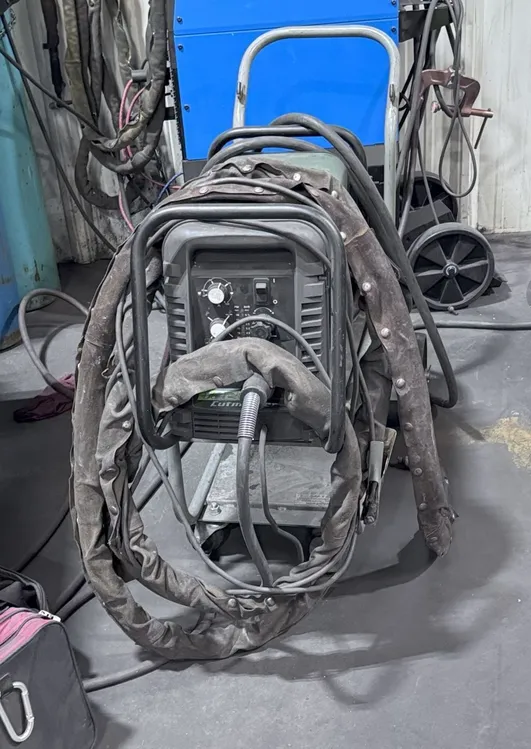

This used Cutmaster 102 provides 100 amps of cutting power. This unit’s light weight compact design at 62Lbs, combined with multiple voltage selection makes it the most portable and powerful cutting
machine available. This unit combined with the 1Torch® has a maximum cut capacity of 1 3/4" (45 mm). More cut capacity than any other system in its class.
***The Miller Welder behind the Victor Plasma Cutter is not included***
PERFORMANCE:
Maximum Cut................1 3/4" (45 mm)
Recommended Cut..............1" (25 mm)
Pierce Rating..............3/4" (20 mm)
Max Amperage Output...........100A
Output Power............12 kW
DIMENSIONS:
12" W x 15" H x 30" D
WEIGHT:
62 lbs (28.1 kg)
TORCH:
SL100
Air Pressure - 70 psi (4.8 bar)
7.5 cfm (212 l/m)
INPUT VOLTAGE:
208-230/460V, 1/3 ph, 50/60 Hz
400V, 3 ph, 50 Hz
600V, 3 ph, 50/60 Hz
DUTY CYCLE (@ 40º C):
60% @ 100A
80% @ 80A
100% @ 70A
AMPERAGE DRAW:
95A @ 230V, 1 ph
45A @ 230V, 3 ph
29A @ 460V, 3 ph
