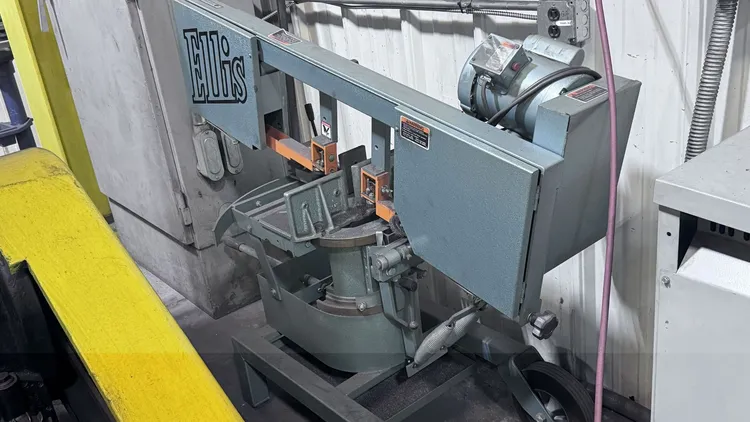

Used ELLIS 1600 | Horizontal Band Saws

Capacity
(90° & 45°)
10” Round at 90°
8” Pipe at 90°
11” Flat at 90°
6-7/8” Round at 45°
6” Pipe at 45°
7-1/4” Flat at 45°
10” H x 8” W at 90°
8” H x 6” W at 45°
Blade Speeds (3).................55-115-230 FPM
Blade Size...............10’0” x 1”
Feed Control..............Hydraulic Adjusting
Vise..............Quick Adjusting Camlock
Shut Off.............Automatic
Motor – Standard.............1 H.P. 110/220 Volt Single Phase
Portable.............10” Wheels-Standard
Shipping Weight............525lbs.
Size Table Height..........27”
Length.............59”
Width .............24-3/4”
Height............47”
Sealed Oil Bath Worm Gear...........Standard
Removable Chip Tray...............Standard
Construction Heavy Steel; Welded & Machined for Accuracy & Durability
