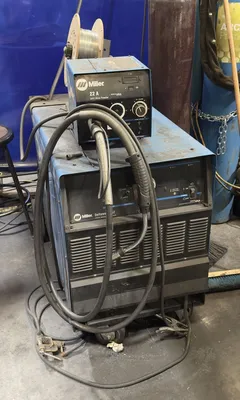

This is a Miller Deltaweld 652 with Miller 22A Wire Feeder. Achieve up to 650A at 44VDC, that supports MIG, Flux Cored, and Air Carbon Arc processes. Operates on 220/230/240V, 460/480V, or 575V.
Miller Deltaweld 652
PROCCESSES:
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
GENERAL SPECIFICATIONS:
Current Type..............DC
Input Hz.............60 Hz
Input Phase............3-Phase
Portability...........Running Gear / Cart
Input Voltage.......220/230/240 V, 460/480 V, 575 V
Max Open Circuit Voltage...........54 VDC
Rated Output...........650 A at 44 VDC, 100% Duty Cycle
Net Weight............472 lbs
Net Length...........38 in
Net Width............23 in
Net Height.............30 in

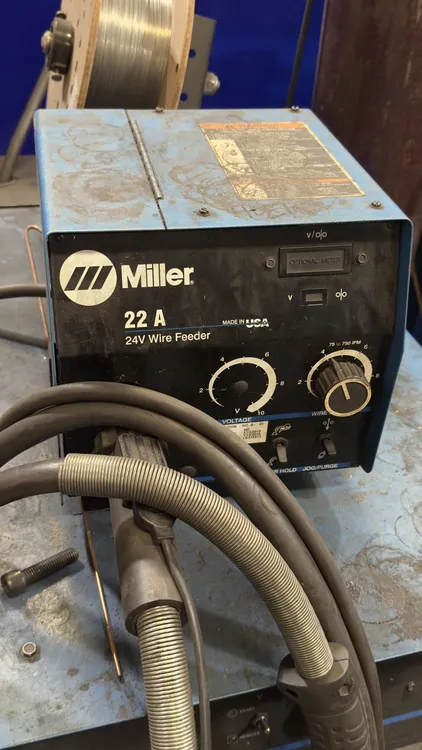

Miller 22A Wire Feeder
24VAC, 7A, 50/60Hz
Feeds Wire..............75 –750 IPM
Electrode Wire Diameter Capacity............(.023-5/64")
Weight..............50 lbs
Dimensions..............30" x 14" x 16"
