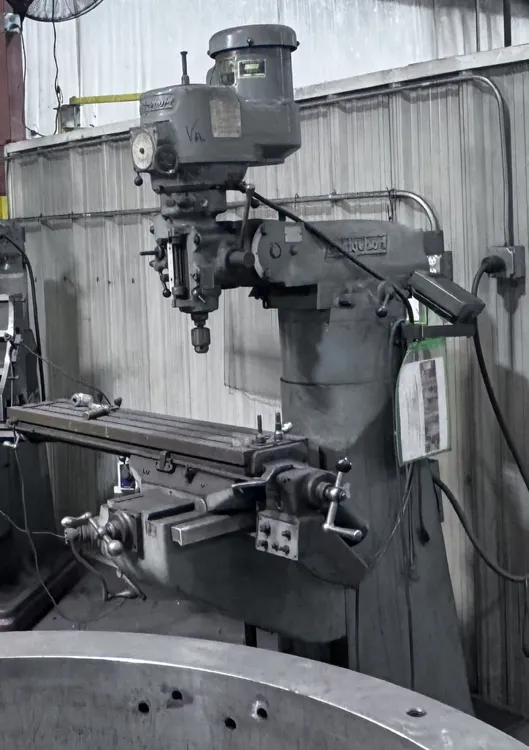

Bridgeport 9" x 42"

X-Axis Table Travel:
With Power Feed..........33"
Y Axis Travel:
With Power Feed..........12"
Quill Travel..........5"
Knee Travel..........16"
Ram Travel..........12"
Throat Distance:
Min..........6.75"
Max..........18.75"
Table to Spindle Nose:
Min..........2.5"
Max..........18.25"
TABLE:
Overall Size..........9" x 49"
Number of T-Slots..........3
T-Slot Centers..........2.5"
T-Slot Size..........0.625"
Height Above Floor Maximum..........47.25"
Weight of Workpiece Maximum..........750lbs.
SPINDLE CONSTRUCTION:
Spindle Diameter..........1.875"
Quill Diameter..........3.375"
SPINDLE TAPER:
Standard..........R-8
SPINDLE SPEED RANGE:
Low Range..........60 - 500 RPM
High Range..........500 - 4200 RPM
MACHINING CAPACITIES:
Power Quill Feed Drilling (mild steel)..........3/8"
Miling (mild steel)..........2 CI/min
Boring Range (mild steel)..........6" Dia
SPACE AND WEIGHT:
Floor Area..........84" x 120"
Height..........87"
Net Weight..........1930lbs
Shipping Weight..........2075lbs
ELECTRICAL SUPPLY:
Input Power..........208/230/460, 3 phase 50/60 cycle
Power Capacity..........4 KVA
