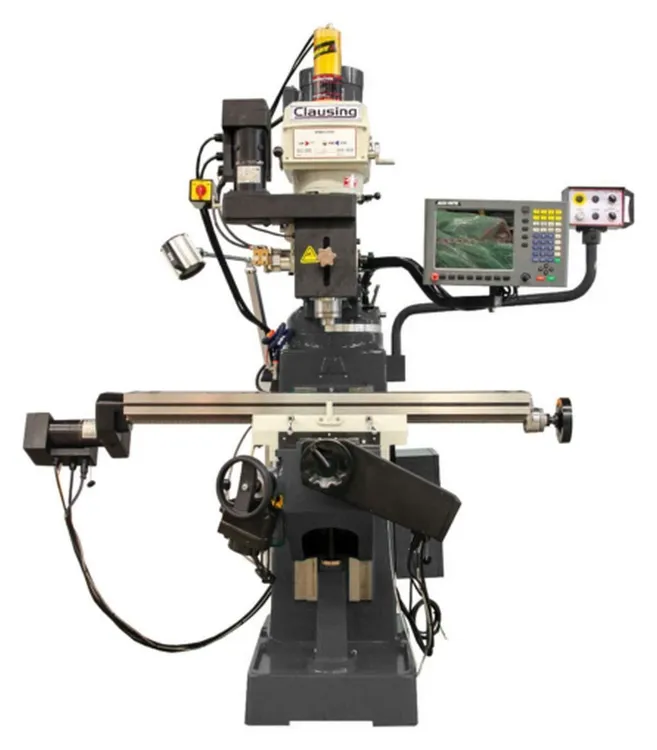

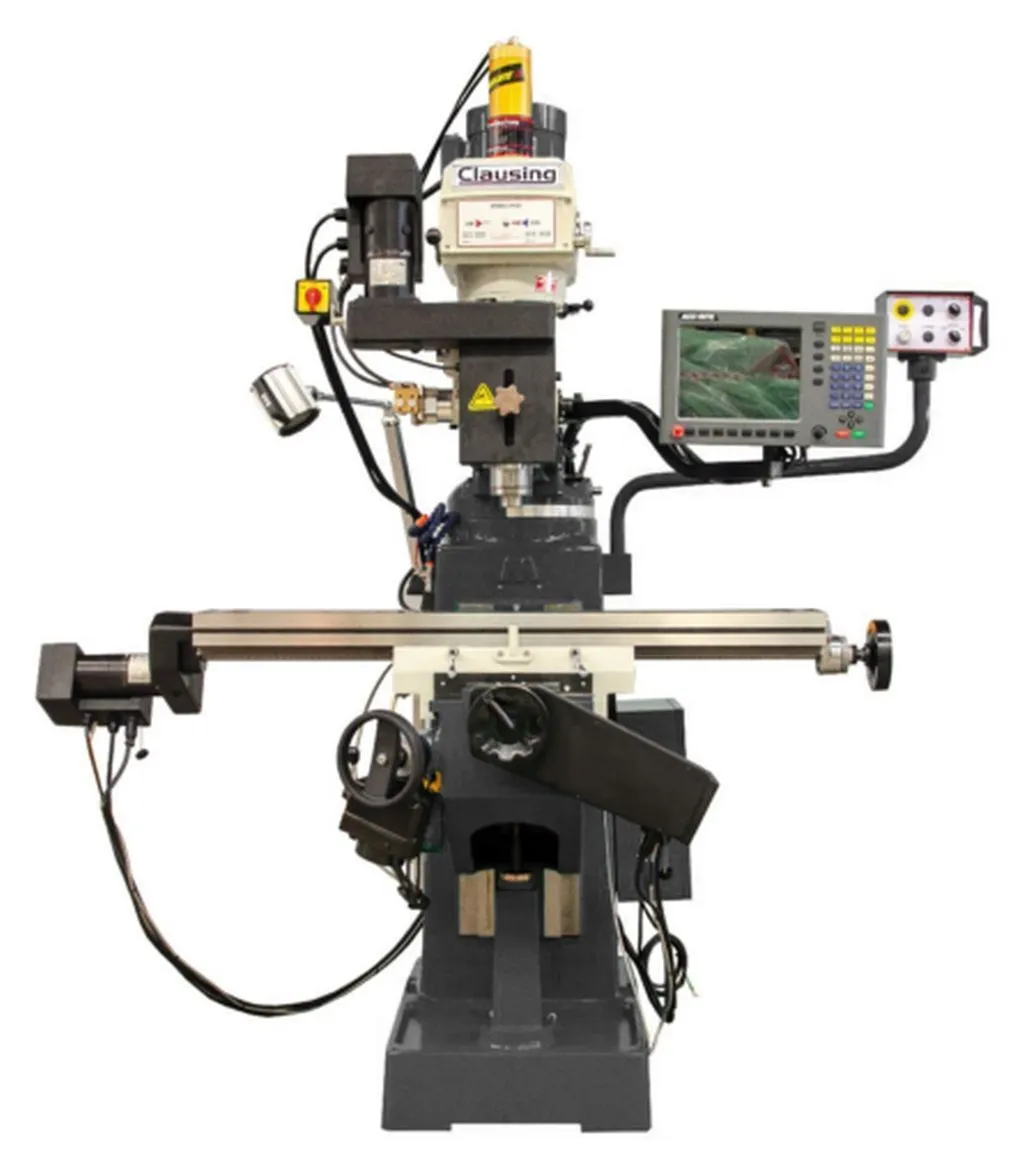

New Clausing 2VS08CNCAR CNC Knee Mill "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Discover precision with the new Clausing 2VS08CNCAR CNC Knee Mill. Featuring a 9" x 49” table, 3 HP spindle, and G2 Acu-Rite control. With hardened components, it offers reliable 2-axis CNC milling. Ideal for enhanced productivity and precision.
Specifications:
• Machine Style..........CNC Knee Mill
• Number Controlled Axes..........2 (X,Y)
• Spindle Speed Control..........Manual Variable Speed
• Spindle (Hp)..........3
• Table Size (inch)..........9 x 49
• Number T-Slots..........3
• T-Slot Width (inch)..........(.638)
• T-Slot Center Distance (inch)..........2.08
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Dovetail
• Knee Way Design..........Dovetail
• X Longitudinal Travel Auto (inch)..........30
• Y Cross Travel Auto (inch)..........11.5
• Knee Travel Manual (inch)..........15
• Ram Travel Manual (inch)..........18.5
• Programmed Feed Rate X,Y (in/min)..........0-100
• Rapid Feed X,Y (in/min)..........100
• Variable Spindle Speed (rpm)..........60 – 4300
• Variable Spindle Speed Low Range (rpm)..........60 – 500
• Variable Spindle Speed High Range (rpm)..........550 – 4300
• Spindle Taper..........R8
• Spindle quill Travel (inch)..........5
• Quill Feed (in/rev)..........(.0015/.0031/.006)
• Quill Diameter (inch)..........3.38
• Column Turret Diameter (inch)..........14.96
• Knee Width (inch)..........11.42
• Column Bearing Length (inch)..........16.54
• Saddle/Table Bearing Length (inch)..........19.88
• Ram/Turret Bearing Length (inch)..........16.14
• Ram Length (inch)..........28.94
• Table Load (lbs.)..........665
• Machine Weight (lbs.)..........2,250
• Machine Voltage Required..........208/230/460
• Phase..........3
• Control Voltage..........115
• Phase..........1
• Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
• Shipping Weight (lbs.)..........2,500
Machine Features:
• G2 Acu-Rite Mill Power Control
• X, Y Ballscrews
• Linear position feedback X,Y
• Manual variable speed with sheave pulley drive
• 9” x 49” Table surface
• Meehanite Castings for superior rigidity and wear resistance
• Hardened and Ground X,Y, Knee ways
• X/Y ways coated with Turcite B for excellent wear resistance
• Column and Knee way covers
• Ground T-slots to provide reference edge for workpiece positioning
• Hardened and ground table surface, and spindle
• Chromed and ground quill
• ABEC7/CP4 Spindle bearings
• Coolant System w/pump and switch
• Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
• Lever operated manual rapid quill movement with linear scale
• Hand wheel for fine quill feed
• Adjustable automatic feed disengagement for quill feed
• Micrometer depth stop for quill
• Reversing switch for clockwise or counter clockwise operation of spindle
• Hand operated spindle brake
• One shot way lube system
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service.
Discover precision with the new Clausing 2VS08CNCAR CNC Knee Mill. Featuring a 9" x 49” table, 3 HP spindle, and G2 Acu-Rite control. With hardened components, it offers reliable 2-axis CNC milling. Ideal for enhanced productivity and precision.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
A Line of Precision, Affordable, Heavy-duty CNC Vertical Knee Mils
A Line of Affordable Heavy-duty CNC Electronic Variable Speed (EVS) Vertical Knee Mills with Two CNC Control Options.
Manual Operation with DRO, Semi-Automatic Operation or Full 2 or 3 Axes CNC Operation
Clausing CNC Knee Mills can be operated as manual machines with a DRO, semi-automatic operation or full X, Y and Z axes (quill) CNC operation.
Imperial
| Table-W | 9" |
| Table-L | 49" |
| Travel-Long | 30" |
| Travel-Cross | 11.5" |
| Power | 3 hp |
| RPM | 4,300 RPM |
| Taper | R8 |
| Control | CNC (G2 Acu-Rite Mill Power Control) |
| Dimensions | 99" x 66" x 88.6" |
| Weight | 2,250Lbs |
Specifications:
• Machine Style..........CNC Knee Mill
• Number Controlled Axes..........2 (X,Y)
• Spindle Speed Control..........Manual Variable Speed
• Spindle (Hp)..........3
• Table Size (inch)..........9 x 49
• Number T-Slots..........3
• T-Slot Width (inch)..........(.638)
• T-Slot Center Distance (inch)..........2.08
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Dovetail
• Knee Way Design..........Dovetail
• X Longitudinal Travel Auto (inch)..........30
• Y Cross Travel Auto (inch)..........11.5
• Knee Travel Manual (inch)..........15
• Ram Travel Manual (inch)..........18.5
• Programmed Feed Rate X,Y (in/min)..........0-100
• Rapid Feed X,Y (in/min)..........100
• Variable Spindle Speed (rpm)..........60 – 4300
• Variable Spindle Speed Low Range (rpm)..........60 – 500
• Variable Spindle Speed High Range (rpm)..........550 – 4300
• Spindle Taper..........R8
• Spindle quill Travel (inch)..........5
• Quill Feed (in/rev)..........(.0015/.0031/.006)
• Quill Diameter (inch)..........3.38
• Column Turret Diameter (inch)..........14.96
• Knee Width (inch)..........11.42
• Column Bearing Length (inch)..........16.54
• Saddle/Table Bearing Length (inch)..........19.88
• Ram/Turret Bearing Length (inch)..........16.14
• Ram Length (inch)..........28.94
• Table Load (lbs.)..........665
• Machine Weight (lbs.)..........2,250
• Machine Voltage Required..........208/230/460
• Phase..........3
• Control Voltage..........115
• Phase..........1
• Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
• Shipping Weight (lbs.)..........2,500
Machine Features:
• G2 Acu-Rite Mill Power Control
• X, Y Ballscrews
• Linear position feedback X,Y
• Manual variable speed with sheave pulley drive
• 9” x 49” Table surface
• Meehanite Castings for superior rigidity and wear resistance
• Hardened and Ground X,Y, Knee ways
• X/Y ways coated with Turcite B for excellent wear resistance
• Column and Knee way covers
• Ground T-slots to provide reference edge for workpiece positioning
• Hardened and ground table surface, and spindle
• Chromed and ground quill
• ABEC7/CP4 Spindle bearings
• Coolant System w/pump and switch
• Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
• Lever operated manual rapid quill movement with linear scale
• Hand wheel for fine quill feed
• Adjustable automatic feed disengagement for quill feed
• Micrometer depth stop for quill
• Reversing switch for clockwise or counter clockwise operation of spindle
• Hand operated spindle brake
• One shot way lube system
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service.
