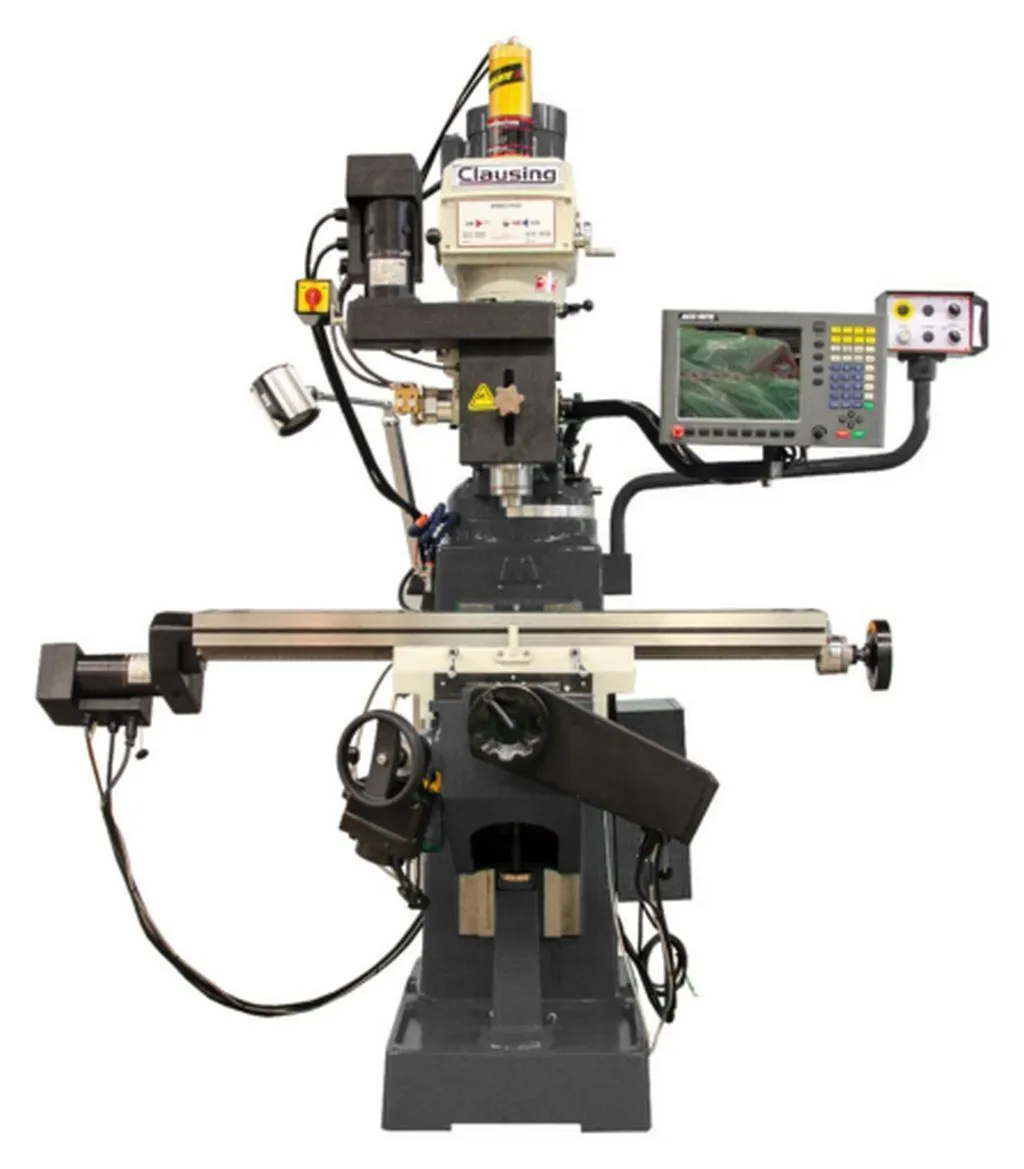

New 2025 Clausing 2EVS08CNC3 CNC Knee Mill "In Stock Now"

Specifications:
• Machine Style..........CNC Knee Mill
• Number Controlled Axes..........3 (X,Y, Z-Quill)
• Spindle Speed Control..........Electronic Inverter Variable
• Spindle (Hp)..........3
• Table Size (inch)..........9 x 49
• Number T-Slots..........3
• T-Slot Width (inch)..........(.638)
• T-Slot Center Distance (inch)..........2.08
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Dovetail
• Knee Way Design..........Dovetail
• X Longitudinal Travel Auto (inch)..........30
• Y Cross Travel Auto (inch)..........11.5
• Knee Travel Manual (inch)..........15
• Ram Travel Manual (inch)..........18.5
• Programmed Feed Rate X,Y,Z (in/min)..........0-100
• Rapid Feed X,Y,Z (in/min)..........100
• Variable Spindle Speed (rpm)..........60 – 4300
• Variable Spindle Speed Low Range (rpm)..........60 – 500
• Variable Spindle Speed High Range (rpm)..........550 – 4300
• Spindle Taper..........R8
• Spindle quill Travel (inch)..........5
• Quill Diameter (inch)..........3.38
• Column Turret Diameter (inch)..........14.96
• Knee Width (inch)..........11.42
• Column Bearing Length (inch)..........16.54
• Saddle/Table Bearing Length (inch)..........19.88
• Ram/Turret Bearing Length (inch)..........16.14
• Ram Length (inch)..........28.94
• Table Load (lbs...........)665
• Machine Weight (lbs.)..........2,250
• Machine Voltage Required..........230/460
• Phase..........3
• Control Voltage..........115
• Phase..........1
• Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
• Shipping Weight (lbs.)..........2,600

Machine Features:
• G2 Acu-Rite Mill Power Control
• X, Y, Z Ballscrews
• Linear position feedback X,Y rotary feedback Z-Quill
• Electronic inverter variable speed
• 9” x 49” Table surface
• Meehanite Castings for superior rigidity and wear resistance
• Hardened and Ground X,Y, and Knee ways
• X/Y ways coated with Turcite B for excellent wear resistance
• Column and Knee way covers
• Ground T-slots to provide reference edge for workpiece positioning
• Hardened and ground table surface, and spindle
• Chromed and ground quill
• ABEC7/CP4 Spindle bearings
• Coolant System w/pump and switch
• Head will tilt 45 degree up and down by worm gear
• Z-quill ballscrew dis-engagement nut to allow manual quill operation with quick lever (re-home required after re-engagement)
• Reversing switch for clockwise or counter clockwise operation of spindle
• Hand operated spindle brake
• One shot way lube system
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
