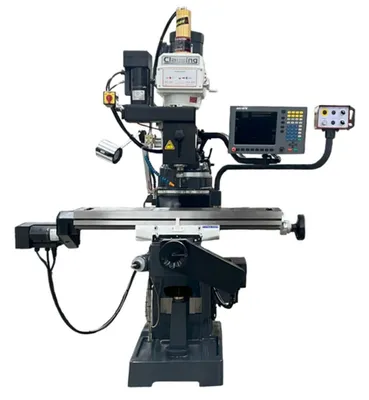

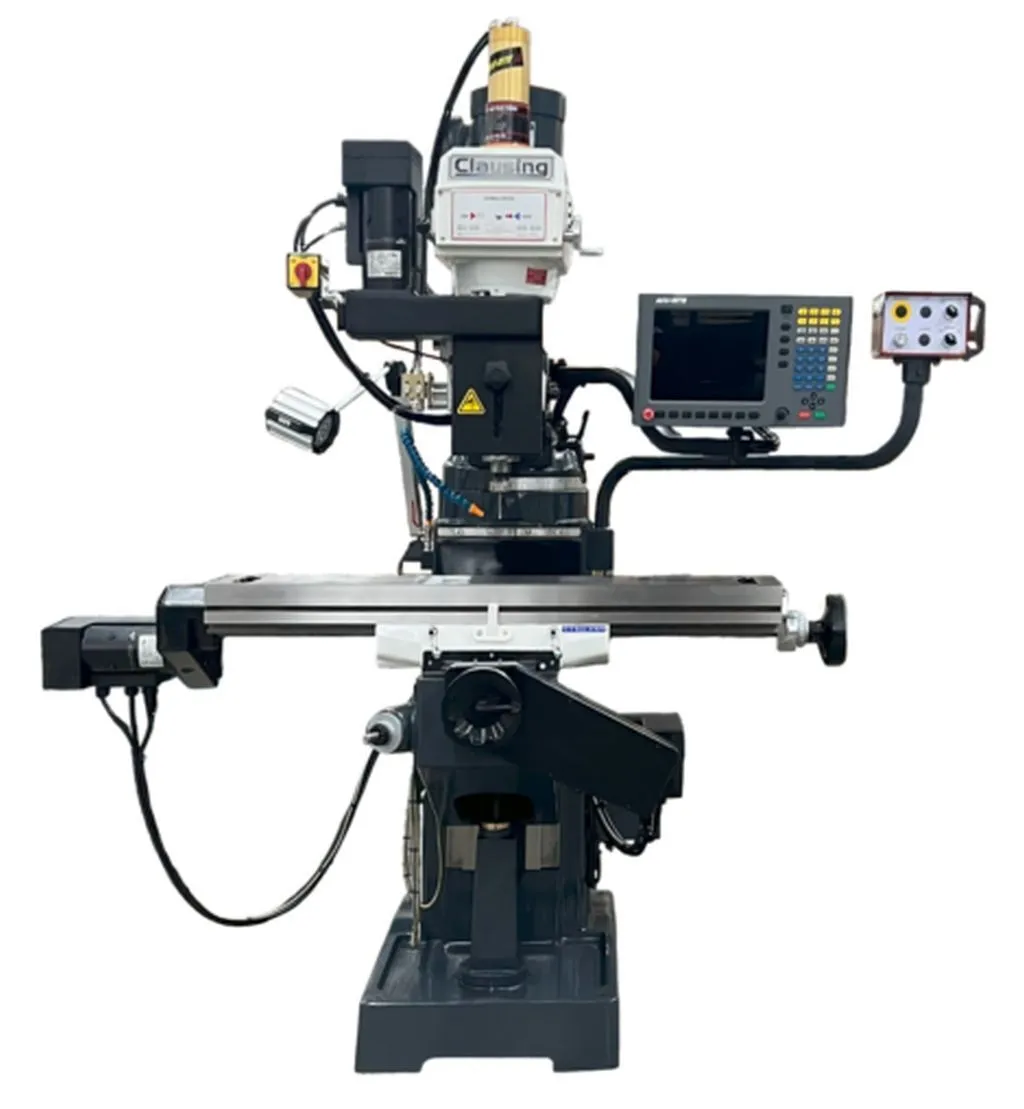

Clausing 4VSQCNC3 CNC Knee Mill

Machine Style..........CNC Knee Mill
Number Controlled Axes..........3 (X,Y, Z-Quill)
Spindle Speed Control..........Manual Variable Speed
Spindle (Hp)..........5
Table Size (inch)..........10 x 54
Number T-Slots..........3
T-Slot Width (inch)..........(.638)
T-Slot Center Distance (inch)..........2.08
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Knee Way Design..........Square
X Longitudinal Travel Auto (inch)..........33
Y Cross Travel Auto (inch)..........16
Knee Travel Manual / AC Power (inch)..........17.7
Ram Travel Manual (inch)..........26.75
Programmed Feed Rate X,Y,Z (in/min)..........0-100
Rapid Feed X,Y,Z (in/min)..........100
Variable Spindle Speed (rpm)..........60 – 4300
Variable Spindle Speed Low Range (rpm)..........60 – 500
Variable Spindle Speed High Range (rpm)..........550 – 4300
Spindle Taper..........NMTB 40
Spindle quill Travel (inch)..........5
Quill Diameter (inch)..........4.13
Column Turret Diameter (inch)..........13.39
Knee Width (inch)..........16.93
Column Bearing Length (inch)..........16.93
Saddle/Table Bearing Length (inch)..........20.28
Ram/Turret Bearing Length (inch)..........17.13
Ram Length (inch)..........33.46
Table Load (lbs.)..........1,108
Machine Weight (lbs.)..........3,630
Machine Voltage Required..........208/230/460
Phase..........3
Control Voltage..........115
Phase..........1
Machine Foot Print (LxWxH) (inch)..........77.6 x 106.3 x 88.8
Shipping Weight (lbs.)..........3,930

Machine Features:
G2 Acu-Rite Mill Power Control
X, Y, Z Ballscrews
Linear position feedback X,Y rotary feedback Z-Quill
Manual variable speed with sheave pulley drive
10” x 54” Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y, and Knee ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Head will tilt 45 degree up and down by worm gear
Z-quill ballscrew dis-engagement nut to allow manual quill operation with quick lever (re-home required after re-engagement)
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
AC Power knee elevation
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
