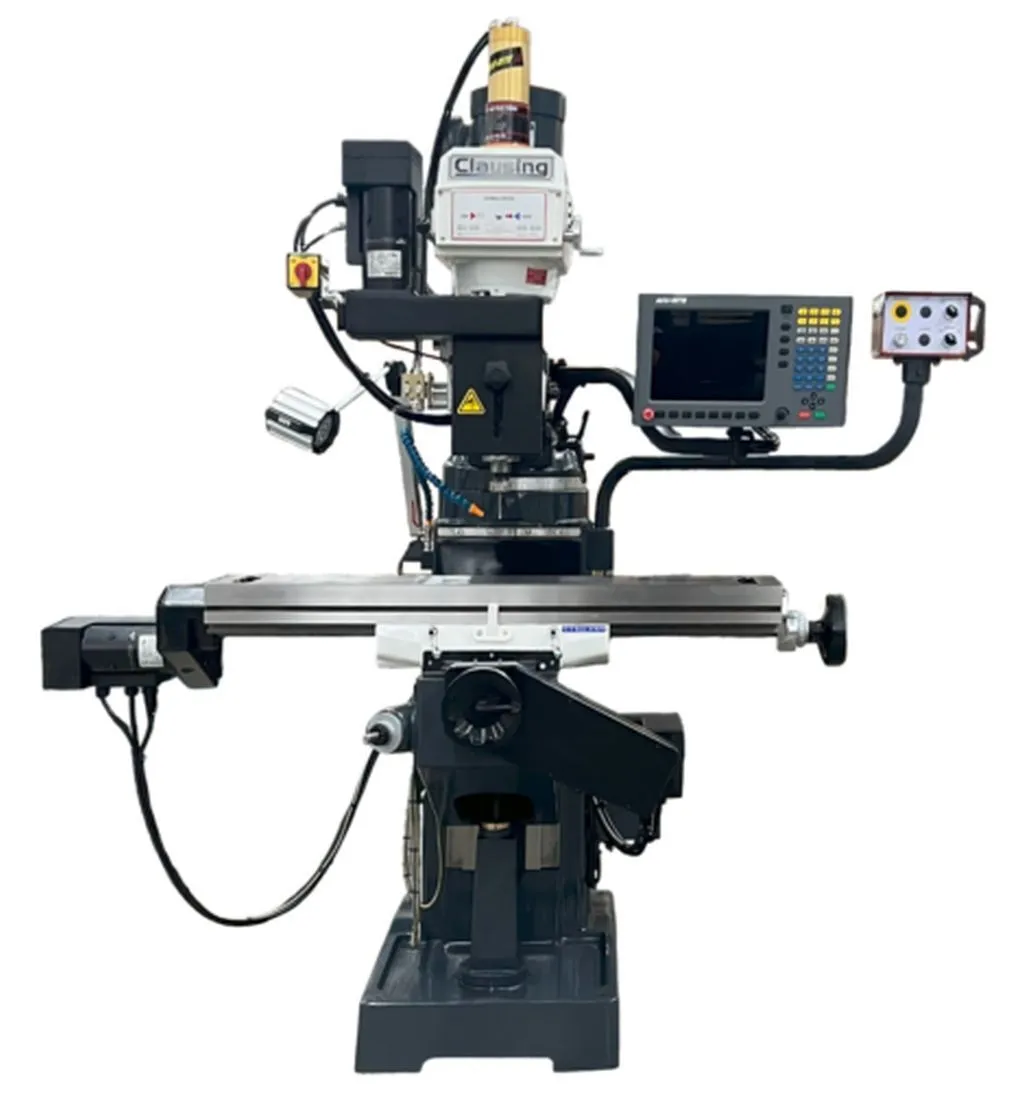

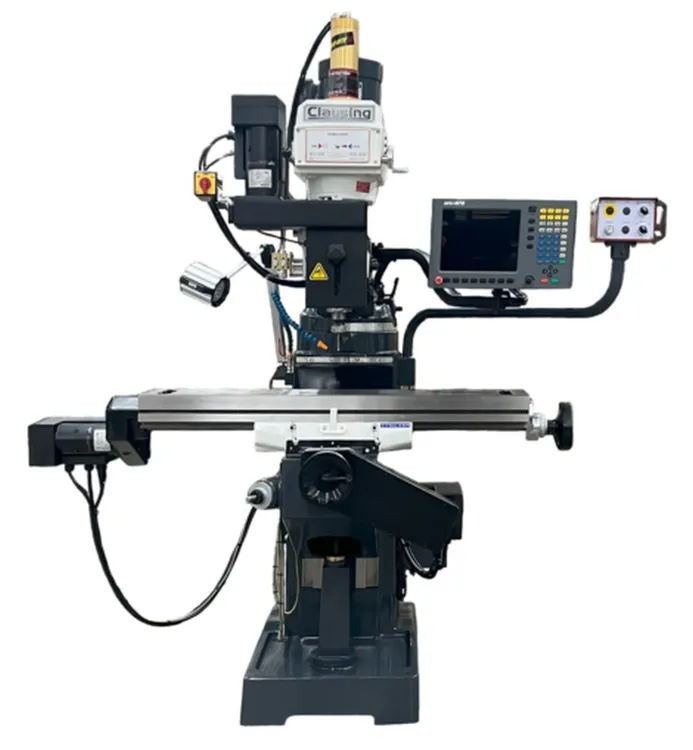

Clausing 500EVS08CNC3 CNC Knee Mill

Machine Style..........CNC Knee Mill
Number Controlled Axes..........3 (X,Y, Z-Quill)
Spindle Speed Control..........Electronic Inverter Variable
Spindle (Hp)..........5
Table Size (inch)..........11 x 58
Number T-Slots..........3
T-Slot Width (inch)..........(.63)
T-Slot Center Distance (inch)..........2.76
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Knee Way Design..........Square
X Longitudinal Travel Auto (inch)..........35.5
Y Cross Travel Auto (inch)..........16
Knee Travel Manual (inch)..........17.7
Ram Travel Manual (inch)..........22
Programmed Feed Rate X,Y,Z (in/min)..........0-100
Rapid Feed X,Y,Z (in/min)..........100
Variable Spindle Speed (rpm)..........50 – 5000
Variable Spindle Speed Low Range (rpm)..........50 – 500
Variable Spindle Speed High Range (rpm)..........550 – 5000
Spindle Taper..........R8
Spindle quill Travel (inch)..........4.75
Quill Diameter (inch)..........3.38
Column Turret Diameter (inch)..........16.54
Knee Width (inch)..........15.35
Column Bearing Length (inch)..........19.69
Saddle/Table Bearing Length (inch)..........25.59
Ram/Turret Bearing Length (inch)..........17.72
Table Load (lbs.)..........990
Machine Weight (lbs.)..........3,300
Machine Voltage Required..........230/460
Phase..........3
Control Voltage..........115
Phase..........1
Machine Foot Print (LxWxH) (inch)..........110 x 82.7 x 90.6
Shipping Weight (lbs.)..........3,700

Machine Features:
G2 Acu-Rite Mill Power Control
X, Y, Z Ballscrews
Linear position feedback X,Y rotary feedback Z-Quill
Electronic inverter variable speed
11” x 58” Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y, and Knee ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Head will tilt 45 degree up and down by worm gear
Z-quill ballscrew dis-engagement nut to allow manual quill operation with quick lever (re-home required after re-engagement)
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
