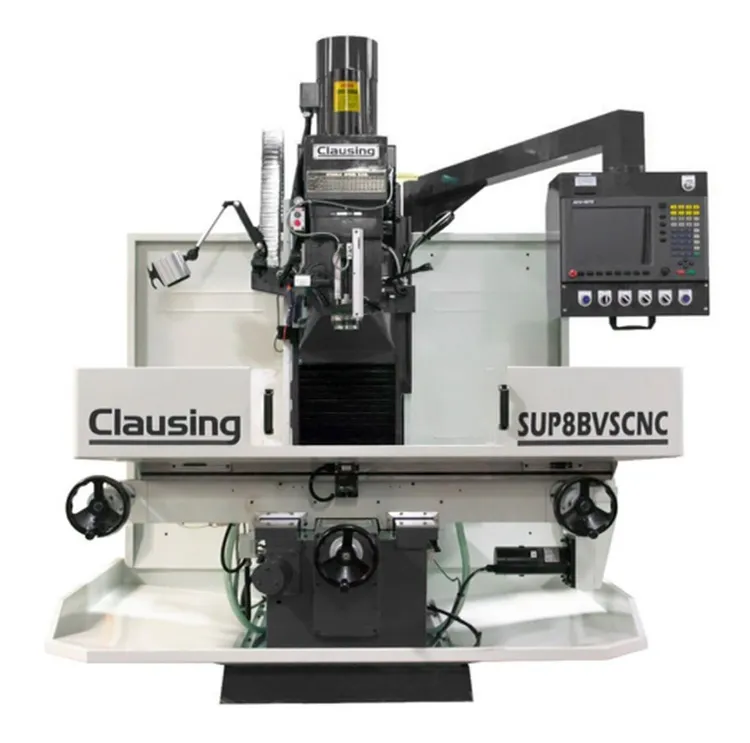

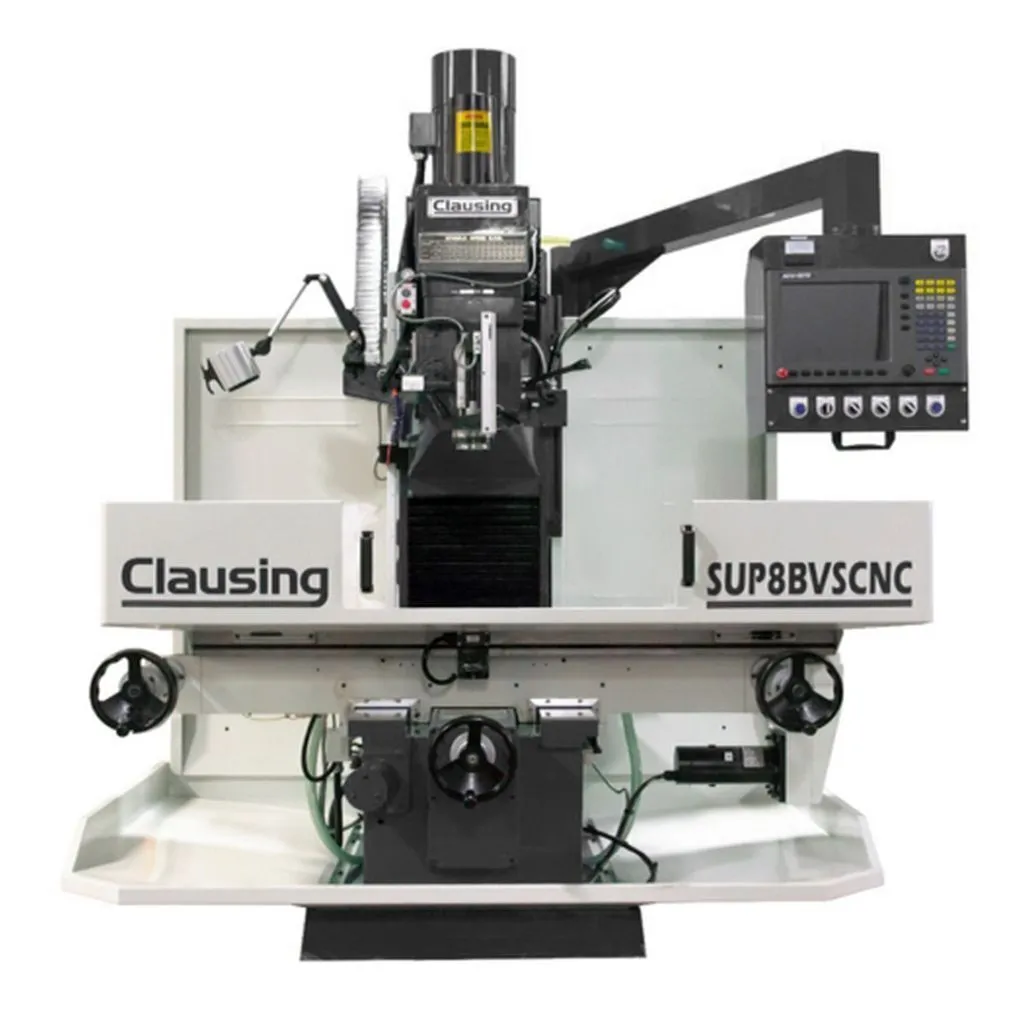

New 2025 Clausing SUP8BVSCNCMP CNC Bed Mill "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Brand new Clausing SUP8BVSCNCMP CNC Bed Mill, featuring a 16.75" x 62" table, 3-axis control, and 41.34" x 22.83" travel. Equipped with a 7.5 hp motor, electronic variable spindle speed up to 5,160 RPM, and integrated halogen worklight.
Specifications:
• Machine Style..........CNC Super Bed Mill
• Spindle Speed Control..........Electronic Variable Speed
• Number of Controlled Axes..........3 (X, Y, Z-Column)
• Manual Quill Scale W-Axis..........Yes (synchronized)
• Spindle Motor Horsepower..........7.5
• Table Size (inch)..........16.75 x 62
• Table Load Capacity (lbs.)..........2,000
• T-Slot Width (in)..........(.709)
• T-Slot Center Distance (inch)..........3.15
• Number T-Slots..........3
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Square
• Column Way Design..........Square
• X – Longitudinal Travel Manual (inch)..........41.34
• Y – Cross Travel Manual (inch)..........22.83
• Z – Column Travel Manual (inch)..........23.62
• W – Quill Travel (inch)..........6
• Programmed Feed Rate X,Y,Z (in/min)..........0-100
• Rapid Feed X,Y,Z (in/min)..........100
• Head Tilt Left or Right..........90°
• Variable Spindle Speed (rpm)..........65 – 5160
• Variable Spindle Speed Low Range (rpm)..........65 – 590
• Variable Spindle Speed High Range (rpm)..........575 – 5160
• Spindle Taper..........NMTB 40
• Quill Feed (in/rev)..........(.0016/.003/.006)
• Quill Diameter (inch)..........4.13
• Length of Saddle on Bed (inch)..........53.15
• Width Across Bed Ways (inch)..........22.83
• Spindle Nose to Table (inch)..........3.93 – 27.55
• Center of Spindle to Column Ways (inch)..........23.62
• Floor to Table Surface (inch)..........34.3
• Table to Column Ways (inch)..........0.79 – 23.62
• Voltage Required..........280/230/460
• Phase..........3
• Machine Weight (lbs.)..........7,200
• Machine Foot Print (WxDxH) (inch)..........98.03 x 80.71 x 84.65
• Shipping Weight (lbs.)..........8,000
Machine Features:
• G2 Acu-Rite Mill Power Control
• C7 double nut X,Y,Z axes 1.26” diameter ballscrew
• Linear position feedback X,Y, Z-Column, Manual W-Quill
• Powerful 7.5 Hp main spindle drive motor
• Electronic inverter variable spindle speed with 2 ranges and 2 mechanical shift ranges
• Hardened and ground spindle with NMTB/NT 40 spindle taper
• Hardened and chromed quill with 6” travel
• CP4 ABEC7 angular contact spindle bearings
• Hardened and ground table surface with ground t-slots for reference edges
• Hardened and ground dovetail ways X axis, hardened and ground square ways Y and Z axis
• “ Turcite B” coating on saddle X,Y axes ways
• Meehanite castings for superior rigidity and wear resistance
• Stainless steel front Y axis way cover, rubber Y axis rear and Z axis
• Automatic lubrication with alarm
• Halogen worklight
• Coolant system with pump
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Brand new Clausing SUP8BVSCNCMP CNC Bed Mill, featuring a 16.75" x 62" table, 3-axis control, and 41.34" x 22.83" travel. Equipped with a 7.5 hp motor, electronic variable spindle speed up to 5,160 RPM, and integrated halogen worklight.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing CNC Bed Mills
Clausing CNC Bed Mill with Acu-Rite Mill Power G2 control. Bed mill can be operated manually with full function DRO or automatically with easy to use conversational shop floor programming for full CNC operations. Spindle speeds by electronic inverter variable speed drive. Electrical and Mechanical high/low shift ranges provide the correct torque for your manufacturing application. One of the heaviest mills in its class, and designed to deliver all the power, precision, and versatility you will need to handle milling jobs for tool rooms and job shops, from prototyping for one-offs to small and large production applications. Combined with automatic lubrication and pendant controls these machines are easy to maintain and operate.
Acu-Rite G2 Mill Power features a 12.1” screen, USB and Ethernet communication ports, 1.4GHZ processor makes this control powerful yet easy to operate. With enhanced tool path icons, expanded tool/datum offsets DXF converter, the operator produces faster set-ups, shorter run times, and quicker shop floor programming. Use CAD/CAM software to download G-code for full three axes contour milling. This control will give a major boost in productivity, and machine performance.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Table-W | 16.75" |
| Table-L | 62" |
| # Axis | 3 |
| Travel-Long | 41.34" |
| Travel-Cross | 22.83" |
| Power | 7.5 hp |
| RPM | 5,160 RPM |
| Taper | NMTB 40 |
| Control | CNC (G2 Acu-Rite Mill Power Control) |
| Dimensions | 98.03" x 80.71" x 84.65" |
| Weight | 7,200Lbs |
Specifications:
• Machine Style..........CNC Super Bed Mill
• Spindle Speed Control..........Electronic Variable Speed
• Number of Controlled Axes..........3 (X, Y, Z-Column)
• Manual Quill Scale W-Axis..........Yes (synchronized)
• Spindle Motor Horsepower..........7.5
• Table Size (inch)..........16.75 x 62
• Table Load Capacity (lbs.)..........2,000
• T-Slot Width (in)..........(.709)
• T-Slot Center Distance (inch)..........3.15
• Number T-Slots..........3
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Square
• Column Way Design..........Square
• X – Longitudinal Travel Manual (inch)..........41.34
• Y – Cross Travel Manual (inch)..........22.83
• Z – Column Travel Manual (inch)..........23.62
• W – Quill Travel (inch)..........6
• Programmed Feed Rate X,Y,Z (in/min)..........0-100
• Rapid Feed X,Y,Z (in/min)..........100
• Head Tilt Left or Right..........90°
• Variable Spindle Speed (rpm)..........65 – 5160
• Variable Spindle Speed Low Range (rpm)..........65 – 590
• Variable Spindle Speed High Range (rpm)..........575 – 5160
• Spindle Taper..........NMTB 40
• Quill Feed (in/rev)..........(.0016/.003/.006)
• Quill Diameter (inch)..........4.13
• Length of Saddle on Bed (inch)..........53.15
• Width Across Bed Ways (inch)..........22.83
• Spindle Nose to Table (inch)..........3.93 – 27.55
• Center of Spindle to Column Ways (inch)..........23.62
• Floor to Table Surface (inch)..........34.3
• Table to Column Ways (inch)..........0.79 – 23.62
• Voltage Required..........280/230/460
• Phase..........3
• Machine Weight (lbs.)..........7,200
• Machine Foot Print (WxDxH) (inch)..........98.03 x 80.71 x 84.65
• Shipping Weight (lbs.)..........8,000
Machine Features:
• G2 Acu-Rite Mill Power Control
• C7 double nut X,Y,Z axes 1.26” diameter ballscrew
• Linear position feedback X,Y, Z-Column, Manual W-Quill
• Powerful 7.5 Hp main spindle drive motor
• Electronic inverter variable spindle speed with 2 ranges and 2 mechanical shift ranges
• Hardened and ground spindle with NMTB/NT 40 spindle taper
• Hardened and chromed quill with 6” travel
• CP4 ABEC7 angular contact spindle bearings
• Hardened and ground table surface with ground t-slots for reference edges
• Hardened and ground dovetail ways X axis, hardened and ground square ways Y and Z axis
• “ Turcite B” coating on saddle X,Y axes ways
• Meehanite castings for superior rigidity and wear resistance
• Stainless steel front Y axis way cover, rubber Y axis rear and Z axis
• Automatic lubrication with alarm
• Halogen worklight
• Coolant system with pump
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
