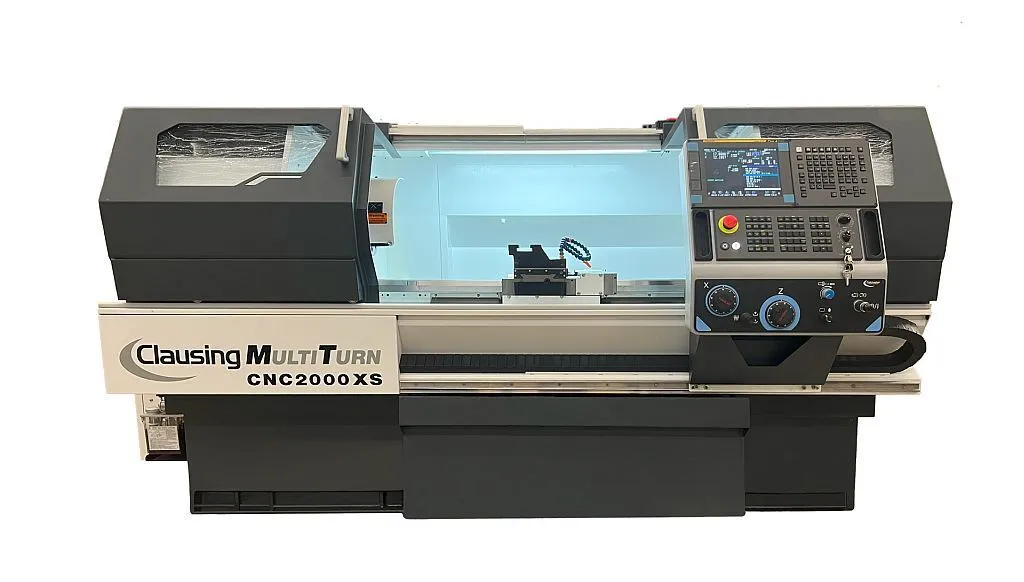

New 2025 Clausing Multiturn CNC2000SC Flat Bed CNC Lathe with Teach Functions, 15.7” Swing over Bed
Have one to sell?
ConditionNew
New
This new 2025 Clausing Colchester/Harrison Multi-Turn Flat Bed CNC Lathe with Teach Capabilities. 15.7” Swing over bed, 3 Gear Infinitely Variable Speed Ranges 1 – 2700rpm, 10 Hp Spindle motor, 50” between centers, 9.7” Swing over the cross slide, 2.125 Spindle Bore, D1-6 camlock spindle nose, 2.87” Tailstock quill diameter with 5 morse taper bore. 230/460 Volts, 3 Phase
Specifications:
Machine Style..........CNC Teach Lathe
CNC Control..........Fanuc Oi w/Alpha or Siemens 828
Spindle Speed Control..........Variable AC Drive
Spindle (Hp)..........7.5/10
Swing Over Bed (inch)..........15.7
Swing Over Cross slide (inch)..........9.7
Swing in Gap (inch)..........23
Distance Between Centers (inch)..........50
Bed Width (inch)..........12.5
Spindle Bore (inch)..........2.125
Spindle Nose (camlock)..........D1-6
Spindle Nose Taper..........4 MT
Number of Spindle Speeds..........3 infinitely variable
Spindle Speed RPM Range..........1 – 2700
X-Axis Rapid Travers (in/min)..........315
Z-Axis rapid Traverse (in/min)..........394
X-Axis Thrust (lbs.)..........915
Z-Axis Thrust (lbs.)..........2,064
X-Axis Ballscrew..........20 x 4 mm
Z-Axis Ballscrew..........32 x 6 mm
Positioning Accuracy (inch)..........0.0002
Repeatability (inch)..........0.0001
Tailstock Quill Diameter (inch)..........2.87
Tailstock Quill Travel (inch)..........5.5
Tailstock Quill Taper..........5 MT
Optional 8 Station Turret..........VDI 30
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........114 x 67 x 59
Machine Weight (lbs.)..........4,850
Machine Features:
• Fanuc OI with Alpha Control or Siemens 828 Control
• Din 8605 toolroom accuracy specification.
• 50” between center distance
• 15.7” Swing over bed
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 1 to 2700 RPM
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted wipers with automatic lubrication system
• Cast Iron Plinths with full enclosure and interlocking sliding doors
• Interlocked chuck guard for manual operations
• Pull out chip pan for easy chip removal
• Extra wide bed provides accuracy and minimal wear
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• Optional 8 station power VDI 30 turret
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
This new 2025 Clausing Colchester/Harrison Multi-Turn Flat Bed CNC Lathe with Teach Capabilities. 15.7” Swing over bed, 3 Gear Infinitely Variable Speed Ranges 1 – 2700rpm, 10 Hp Spindle motor, 50” between centers, 9.7” Swing over the cross slide, 2.125 Spindle Bore, D1-6 camlock spindle nose, 2.87” Tailstock quill diameter with 5 morse taper bore. 230/460 Volts, 3 Phase
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Colchester/Harrison CNC Teach Lathes
Clausing Colchester/Harrison CNC Teach Lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. The operator can use the Alpha system to use the machine manually and/or automatic cycles. Manual Guide i allows for quick easy programming of production runs. This ability to operate the machine manual or full CNC machine makes it exceptional for toolrooms, R&D facilities, maintenance shops, and small production jobs.
Imperial
| Swing | 15.7" |
| Machining Length | 50" |
| # Axis | 3 |
| Bar Capacity | 2.125" |
| Power | 10 hp |
| Max RPM | 2,700 RPM |
| Turning Dia | 15.7" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Fanuc Oi w/Alpha or Siemens 828) |
| Dimensions | 114" x 67" x 59" |
| Weight | 4,850Lbs. |
Specifications:
Machine Style..........CNC Teach Lathe
CNC Control..........Fanuc Oi w/Alpha or Siemens 828
Spindle Speed Control..........Variable AC Drive
Spindle (Hp)..........7.5/10
Swing Over Bed (inch)..........15.7
Swing Over Cross slide (inch)..........9.7
Swing in Gap (inch)..........23
Distance Between Centers (inch)..........50
Bed Width (inch)..........12.5
Spindle Bore (inch)..........2.125
Spindle Nose (camlock)..........D1-6
Spindle Nose Taper..........4 MT
Number of Spindle Speeds..........3 infinitely variable
Spindle Speed RPM Range..........1 – 2700
X-Axis Rapid Travers (in/min)..........315
Z-Axis rapid Traverse (in/min)..........394
X-Axis Thrust (lbs.)..........915
Z-Axis Thrust (lbs.)..........2,064
X-Axis Ballscrew..........20 x 4 mm
Z-Axis Ballscrew..........32 x 6 mm
Positioning Accuracy (inch)..........0.0002
Repeatability (inch)..........0.0001
Tailstock Quill Diameter (inch)..........2.87
Tailstock Quill Travel (inch)..........5.5
Tailstock Quill Taper..........5 MT
Optional 8 Station Turret..........VDI 30
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........114 x 67 x 59
Machine Weight (lbs.)..........4,850
Machine Features:
• Fanuc OI with Alpha Control or Siemens 828 Control
• Din 8605 toolroom accuracy specification.
• 50” between center distance
• 15.7” Swing over bed
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 1 to 2700 RPM
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted wipers with automatic lubrication system
• Cast Iron Plinths with full enclosure and interlocking sliding doors
• Interlocked chuck guard for manual operations
• Pull out chip pan for easy chip removal
• Extra wide bed provides accuracy and minimal wear
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• Optional 8 station power VDI 30 turret
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
