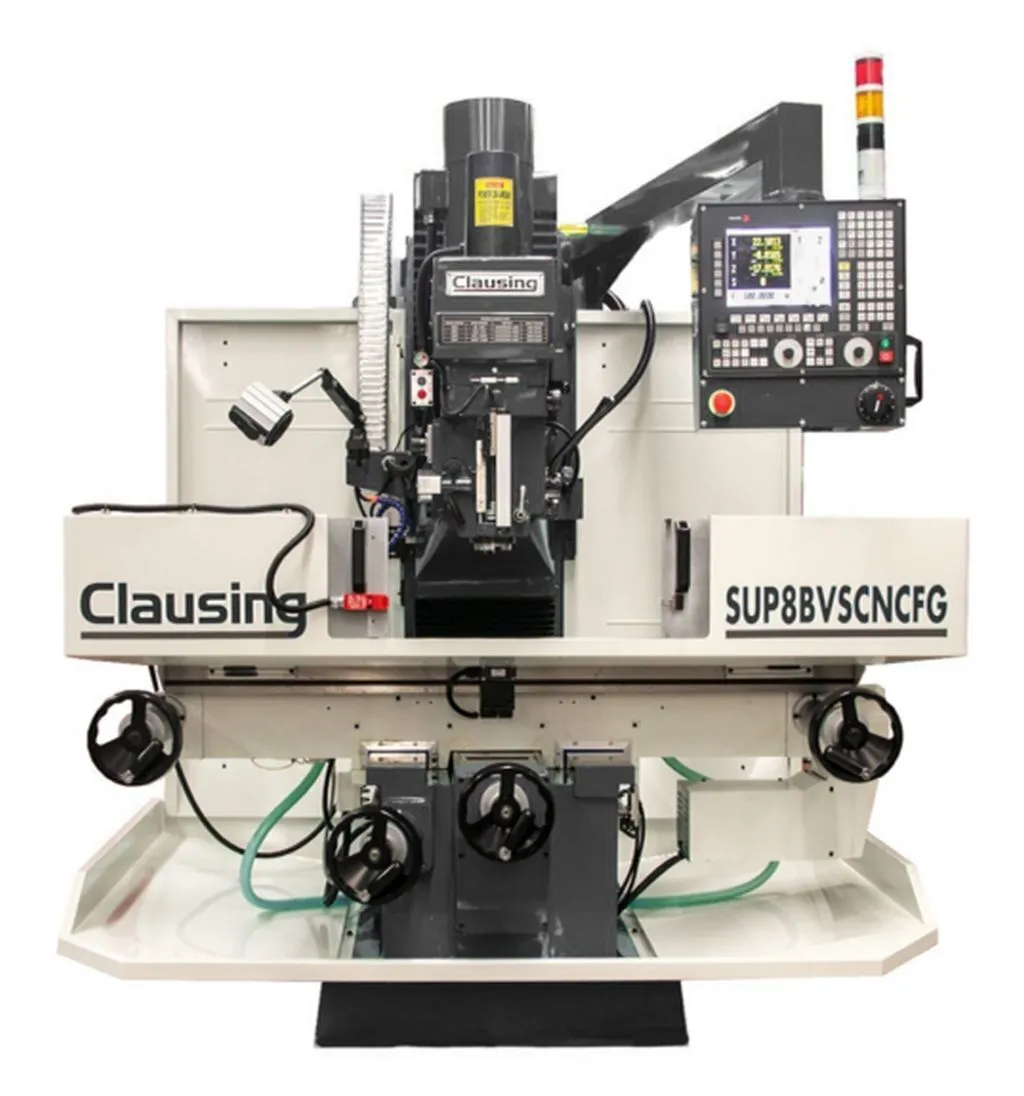

Clausing SUP10BVVCNC CNC Bed Mill

Machine Style..........CNC Super Bed Mill
Spindle Speed Control..........Electronic Variable Speed
Number of Controlled Axes..........3 (X, Y, Z-Column)
Manual Quill Scale W-Axis..........Yes (synchronized)
Spindle Motor Horsepower..........7.5
Table Size (inch)..........17.7 x 70.8
Table Load Capacity (lbs.)..........2,500
T-Slot Width (in)..........(.630)
T-Slot Center Distance (inch)..........3.75
Number T-Slots..........3
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Column Way Design..........Square
X – Longitudinal Travel Manual (inch)..........51.18
Y – Cross Travel Manual (inch)..........23.6
Z – Column Travel Manual (inch)..........27.55
Programmed Feed Rate X,Y (in/min)..........0 – 29.53
Rapid Feed X,Y (in/min)..........472
Programmed Feed Rate Z (in/min)..........0 -29.53
Rapid Feed Z (in/min)..........100
Variable Spindle Speed (rpm)..........0 – 8000
Spindle Taper..........CAT 40
Length of Saddle on Bed (inch)..........54
Width Across Bed Ways (inch)..........23
Spindle Nose to Table (inch)..........5.9 – 33.46
Center of Spindle to Column Ways (inch)..........22.8
Floor to Table Surface (inch)..........35
Voltage Required..........230 or 460 (w/transformer)
Phase..........3
Machine Weight (lbs.)..........8,750
Machine Foot Print (WxDxH) (inch)..........108.3 x 95.9 x 115.4
Shipping Weight (lbs.)..........9,900

Machine Features:
Fanuc Oi Control
Linear position feedback X,Y, Z-Column
Powerful 7.5 Hp main spindle drive motor
Electronic inverter variable spindle speed
Hardened and ground spindle with CAT 40 spindle taper
P4 Angular contact spindle bearings limit temperature variations
Hardened and ground table surface with ground t-slots for reference edges
Hardened and ground dovetail ways X axis, hardened and ground square ways Y and Z axis
“ Turcite B” coating on saddle X,Y,Z axes ways
1:2 Ratio timing belt boxes X, Y, Z axes for increased feed torque
Hardened and ground C5 double nut ballscrew on X, Y, Z axes provide high precision movement
High grade castings for superior rigidity and wear resistance
Stainless steel Y, Z axis way covers
Automatic lubrication with alarm
Halogen worklight
Coolant system with pump
Optional 16 or 20 tool changer
Head and Table guards
Optional full guarding
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
