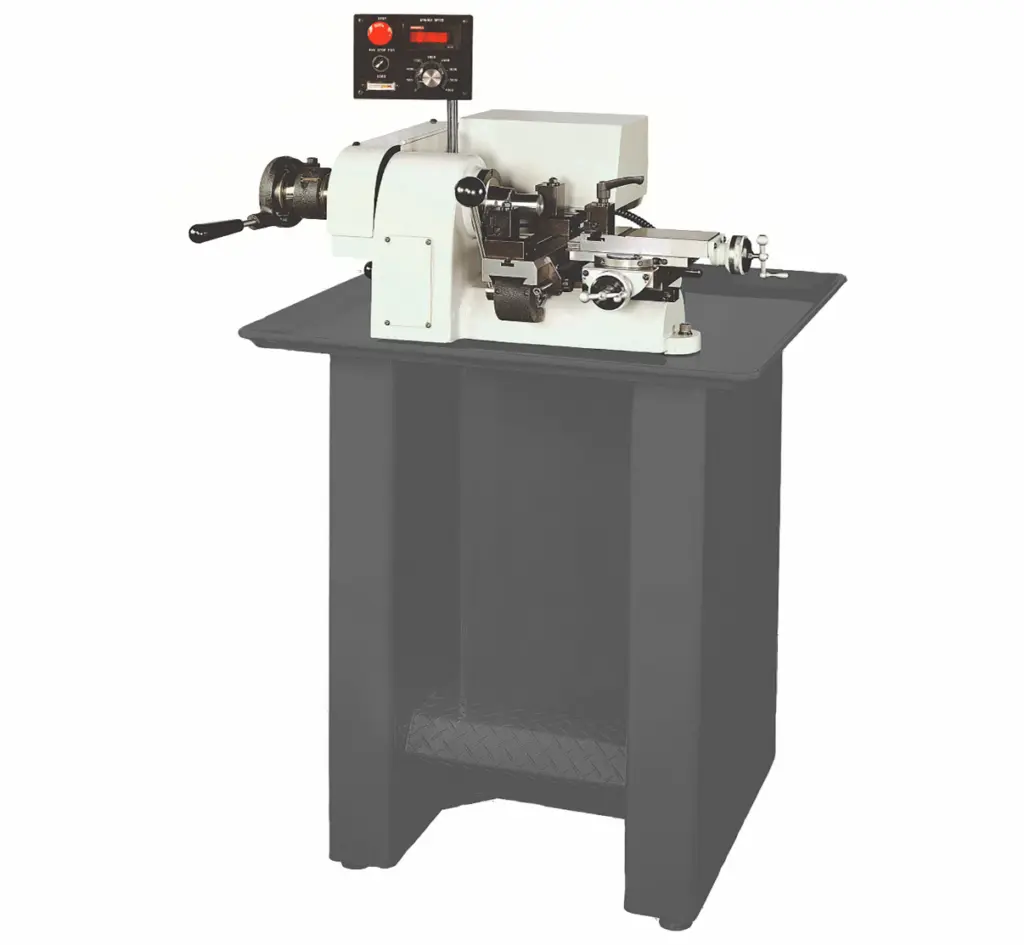

2025 - CT618FL – Clausing 9” Swing Over Bed, Toolroom Lathe, No Tailstock

Machine Style Toolroom Lathe
Spindle Speed Control Inverter Variable Speed
Spindle (Hp) 1
With Chuck (inch) 6
With Expanding Collets (inch) 3
With Round 5C Collets (inch) 1-1/16
With Hexagon 5C Collets (inch) 7/8
With Square 5C Collets (inch) 3/4
With Step Chuck (inch) 1-1/16 to 6
Spindle Nose Diameter (inch)
2.18
Spindle Nose I.D. / O.D. 5C (10°)/4° Taper
Spindle Speeds (rpm) 50-4000
Hole Through Spindle (inch) 1-1/4
Bar Stock Diameter 5C Collet (inch) 1-1/16
Distance between Centers (inch) No Tailstock
Swing Over Bed (inch) 9
Swing Over Carriage (inch) –
Swing Over Cross Slide (inch)
–
Carriage Power Feed Range (variable)
–
Cross Slide Power Feed Range (variable)
–
Cross Slide Travel (inch) –
Quick Action Compound Slide Travel (in)
–
Compound Slide Travel (inch)
X=4.48, Z=5.5
Coolant Pump (Hp)
Optional
Feed Inverter (Hp)
–
Tailstock Quill Travel (inch)
No Tailstock
Range of Threads (inch) –
Range of Threads (mm)
–
Voltage Required
230/460
Phase
3
Machine Foot Print (LxWxH) (inch)
36 x 36 x 55
Machine Weight (lbs.) 820

Machine Features:
A Compact machine with proven design
Superior surface finishes
9” Swing over bed
1-1/16” 5C collet capacity
Powerful 1 Hp 50-4000 rpm spindle motor with current vector inverter drive, increases low end torque providing desired speed on demand
Flat panel LED displays shows spindle rpm
Quick change spindle speeds
Circular accuracy to 50 millionths of an inch
Fast lever collet chucking with one single movement
The spindle is mounted on high precision preload angular contact ball bearings eliminating radial end play
Solid hardened and ground alloy tool steel bed
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
