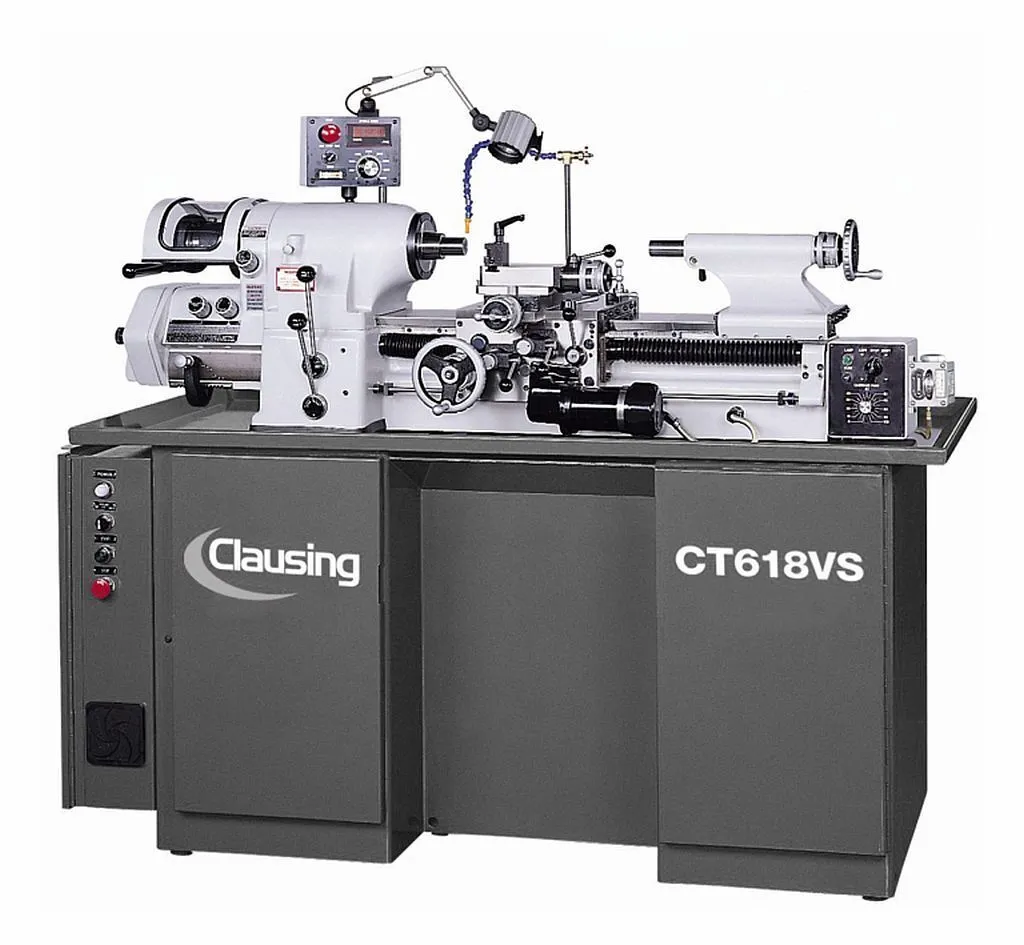

New 2025 Clausing CT618VS 11” Swing Over Bed, 18” Between Centers, Toolroom Lathe, 9.05” Swing Over Carriage

Specifications:

Machine Style..........Toolroom Lathe
Spindle Speed Control..........Inverter Variable Speed
Spindle (Hp)..........3
With Chuck (inch)..........6
With Expanding Collets (inch)..........3
With Round 5C Collets (inch)..........1-1/16
With Hexagon 5C Collets (inch)..........7/8
With Square 5C Collets (inch)..........3/4
With Step Chuck (inch)..........1-1/16 to 6
Spindle Nose Diameter (inch)..........2.18
Spindle Nose I.D. / O.D...........5C (10°)/4° Taper
Spindle Speeds (rpm)..........50-4000
Hole Through Spindle (inch)..........1-1/4
Bar Stock Diameter 5C Collet (inch)..........1-1/16
Distance between Centers (inch)..........17.99
Swing Over Bed (inch)..........11
Swing Over Carriage (inch)..........9.05
Swing Over Cross Slide (inch)..........5.98
Carriage Power Feed Range (variable)..........0.314 – 7.0 in/min
Cross Slide Power Feed Range (variable)..........0.196 – 4.0 in/min
Cross Slide Travel (inch)..........5.98
Quick Action Compound Slide Travel (in)..........0.098
Compound Slide Travel (inch)..........2.99
Coolant Pump (Hp)..........1/8
Feed Inverter (Hp)..........1/2
Tailstock Quill Travel (inch)..........3.7
Range of Threads (inch)..........11 – 108
Range of Threads (mm)..........0.275 – 2.7
Voltage Required..........230/460
Phase..........3
Machine Footprint (LxWxH) (inch)..........73 x 30 x 67
Machine Weight (lbs.)..........2,200

Machine Features:

• 18” between center distance
• Powerful 3 Hp 50-4000 rpm spindle motor with current vector inverter drive, increases low end torque providing desired speed on demand(optional 5 Hp 50-6000 rpm)
• Flat panel LED displays shows spindle rpm
• Circular accuracy to 50 millionths of an inch
• Full bearing carriage with turcite-B coated slideway bearing material between carriage and bed
• Fast lever collet chucking with one single movement
• The spindle is mounted on high precision preload angular contact ball bearings eliminating radial end play
• Solid hardened and ground alloy tool steel bed
• Independent electric variable feeds for carriage and cross slide , provide freedom of operation
• Inch/Metric quick change gearbox
• Inch/Metric dual dial and quick action compound slide for threading
• Automatic thread length control
• A one-year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
