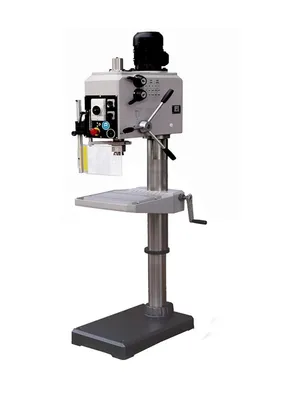

Clausing IberDrill Geared Head Drill Press with state of the art technology, allows you to select the best rpm for the tool with easy to use shift handles. 8 speeds 90 – 3360 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. 2 Speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Machine Style Floor Drill W/Adjustable Table
Drive Type Geared Head
Number of Speed Steps 8
Spindle Speeds (RPM) 90, 192, 300, 504, 612, 1020, 1740, 3360
Column to Spindle Center (in) 9.84
Spindle Nose 3MT
Spindle Travel (in) 4.72
Quill Feed Manual
Spindle to Work Surface Min/Max. (in) 4.13 / 25.2
Column Diameter (in) 3.94
Adjustable Table Surface (in) 10.6 x 11.8
Work Table T-Slots (in) 1/2
Base Size (in) 24 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 408
Machine Dimensions (WxDxH in) 20 x 32 x 75.8
Shipping Weight (lbs.) 496
Shipping Dimensions ships laying down (LxWxD in) 84 x 24 x 36
