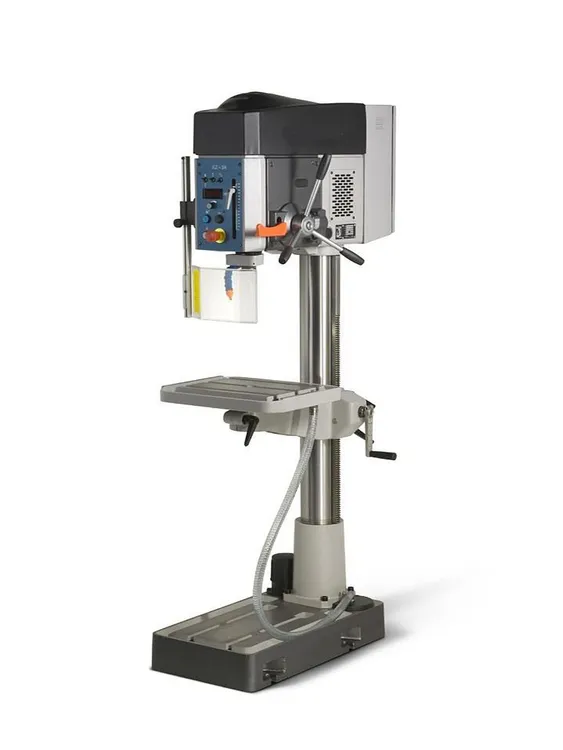

Clausing Iberdrill 23.62” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 100 – 2000 RPM by electronic inverter, 2.95” diameter quill, 4MT taper spindle, electromagnetic clutch quill feed, 4 hp spindle motor, 1.34” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Electronic Inverter Drive
Number of Speed Steps.. Infinite
Spindle Speeds (RPM)... 100 – 2000
Column to Spindle Center (in) 11.81
Spindle Nose........... 4MT
Spindle Travel (in).... 5.91
Quill Feed............. Electromagnetic Clutch
3 Feed Range (in/rev).. 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in) 1.97 / 28.5
Column Diameter (in)... 4.92
Adjustable Table Surface (in) 15.75 x 18.9
Work Table T-Slots (in) 1/2
Base Size (in)......... 29.1 x 16.2
Drill Capacity with Manual Feed (in) 1.34
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 4
Machine Weight (lbs.).. 794
Machine Dimensions (WxDxH in)
20 x 38 x 76.8
Shipping Weight (lbs.). 904
Shipping Dimensions ships laying down (LxWxD in)
92 x 24 x 43.3
