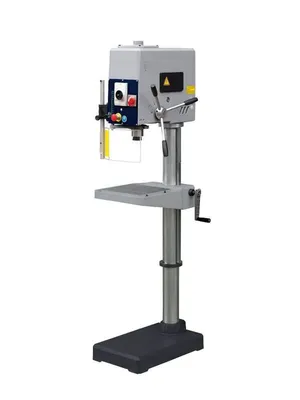

Clausing Iberdrill 19.68” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 295 – 4800 RPM electronic inverter, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1 ½ hp, 1” drill capacity steel, 230/460 volt 3 Phase voltage
Specifications:
Machine Style Floor Drill W/Adjustable Table
Drive Type Electronic Inverter Drive
Number of Speed Steps Infinite
Spindle Speeds (RPM) 300 – 4800
Column to Spindle Center (in) 9.84
Spindle Nose 3MT
Spindle Travel (in) 4.72
Quill Feed Manual
Spindle to Work Surface Min/Max. (in) 4.13 / 25.2
Column Diameter (in) 3.94
Adjustable Table Surface (in) 10.6 x 11.8
Work Table T-Slots (in) 1/2
Base Size (in) 24 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 408
Machine Dimensions (WxDxH in) 20 x 32 x 75.8
Shipping Weight (lbs.) 496
Shipping Dimensions ships laying down (LxWxD in) 84 x 24 x 36
Machine Features:
Belt Drive – electronic inverter
Depth scale and adjustable depth stop
Adjustable work table
Work light
Manual spindle reversing switch
“RS” Models are equipped with automatic spindle reversing system for tapping
Thermomagnetic motor breaker switch
Low voltage electric equipment
Safety drill guard with microswitch
Automatic tool ejector
Emergency stop button
CE mark
