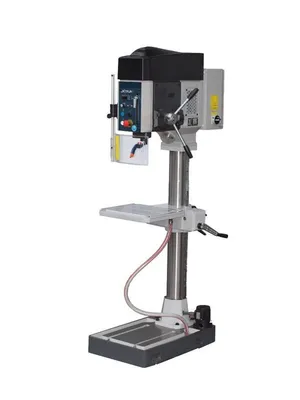

New 2025 Clausing Ibarmia SZ34 Iberdrill 23.62” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 100 – 2000
Column to Spindle Center (in).......... 11.81
Spindle Nose.......... 4MT
Spindle Travel (in).......... 5.91
Quill Feed.......... Manual
3 Feed Range (in/rev).......... N/A
Spindle to Work Surface Min/Max. (in).......... 1.97 / 28.5
Column Diameter (in).......... 4.92
Adjustable Table Surface (in).......... 15.75 x 18.9
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 29.1 x 16.2
Drill Capacity with Manual Feed (in).......... 1.34
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 4
Machine Weight (lbs.).......... 794
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 904
Shipping Dimensions ships laying down (LxWxD in).......... 92 x 24 x 43.3

Machine Features:

• Electronic variable inverter
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Manual quill feed system
• Adjustable worktable
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
