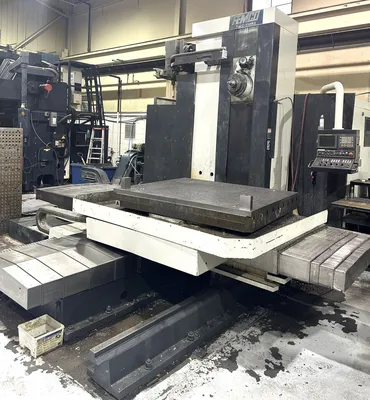

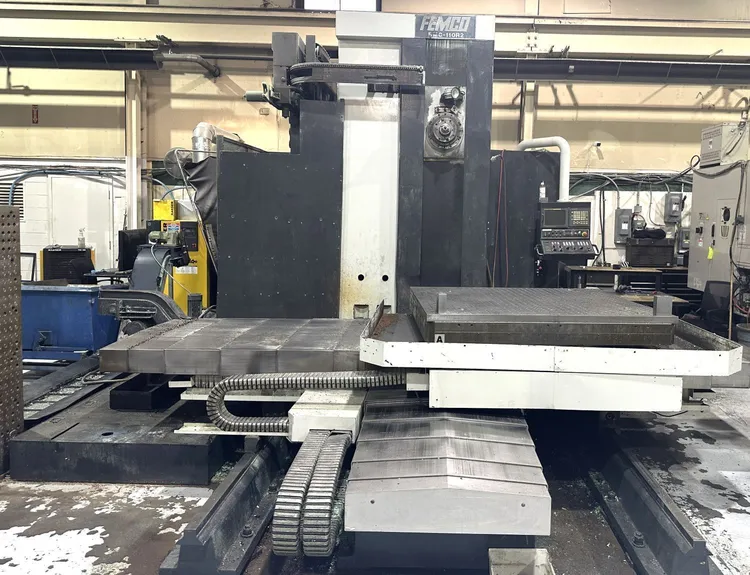

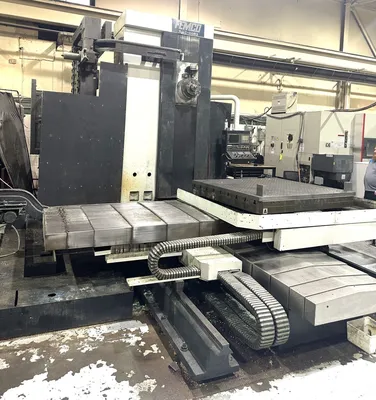

2006 FEMCO BMC-110R2 CNC BORING MILL WITH FANUC 21iMB CNC CONTROL
Have one to sell?
ConditionUsed
1 available
2006 FEMCO BMC-110R CNC Boring Mill with Fanuc 21iMB control, 4.33" spindle, 78.7" X-travel, 70.87" Y-travel, 35 HP, 2500 RPM, 60-station ATC. Includes coolant thru spindle, full 4th-axis rotary table, rigid tapping, and chip conveyor. Available Midwest.
Spindle Size: 4.3"
Spindle Taper: ISO #50
X-Travel: 78.7"
Y-Travel: 70.87"
Z-Travel: 64.96"
W-Axis Travel: 19.69"
Spindle RPM'S: 2500
Rotary Table width: 63"
Rotary Table Length: 56.5"
Main Power: 35 HP 2-Speed Geared Head stock
Equipped With:
Fanuc 21iMB CNC Control
Coolant Thru Spindle
Table Indexing (B axis): Full B Axis Rotary
Table max weight: 14000 lbs
60 Station Automatic Tool Changer
Rigid Tapping
Helical Interpolation
Chip Conveyor
Full Forth Axis Rotary table built in Table
Spindle Chiller Unit
Fully installed and available for inspection under power Midwest.
Operational Videos Available
F.O.B: We offer Excellent Machine Prep & Loading Costs!
Equipped With:
Fanuc 21iMB CNC Control
Coolant Thru Spindle
Table Indexing (B axis): Full B Axis Rotary
Table max weight: 14000 lbs
60 Station Automatic Tool Changer
Rigid Tapping
Helical Interpolation
Chip Conveyor
Full Forth Axis Rotary table built in Table
Spindle Chiller Unit
