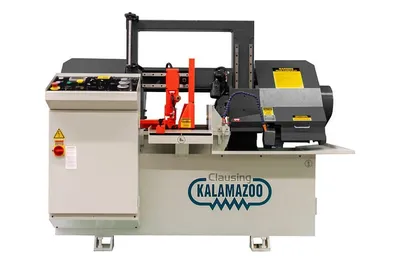

New 2025 Clausing Kalamazoo H1013SA Double column semi-automatic horizontal bandsaw 10.2" x 13.4" max rectangular capacity

Machine Style.................. Semi-Automatic
Drive Type..................... Infinitely Variable Speed
*Motor......................... 5 Hp, *230v 3 Ph
Hydraulic Pump Motor........... 1 Hp
Hydraulic Oil Capacity......... 6.6 gallons
Blade Speeds (Variable speed) 49-262 fpm
Blade Size (W x T x L)......... 1.25” x 0.042” x 161”
Blade Tension.................. Hydraulic
Coolant Recirculating.......... 1/8 Hp
Coolant Capacity............... 10.57 gallons
90° Cutting Capacity
Round........ 10.2”
Square....... 10.2”
Rectangular.. 10.2” x 13.4”

Length......... 47”
Width.......... 78”
Height......... 61”
Bed Height..... 31.1”
Net Weight..... 2,100 lbs.
Shipping Weight 2,500 lbs.

Machine Features:

• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
