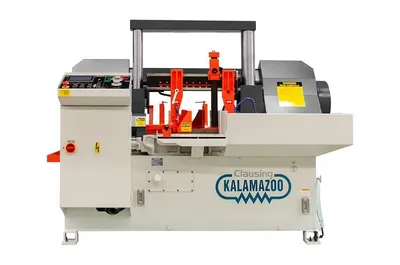

Discover the new 2025 Clausing Kalamazoo H1315NC Automatic Horizontal Bandsaw with a robust twin column design, NC-100 tech, and a 5.7” HMI touch screen. Featuring a 15" x 12.6" rectangular capacity, this machine offers precision, power, and versatility.
Machine Style.......... Automatic
Drive Type............. Inverter Controlled Variable Speed
*Motor................. 5 Hp, 230 3 Ph
Hydraulic Pump Motor... 1 Hp
Hydraulic Oil Capacity 6.6 gallons
Blade Speeds (Variable speed).......... 49-262 fpm
Blade Size (W x T x L) 1.25” x .042” x 166.9”
Blade Tension.......... Hydraulic
Coolant Recirculating
Coolant Capacity....... 11.9 gallons
90° Cutting Capacity
Round ........12.6”
Square....... 12.6”
Rectangular.. 15” x 12.6”
Bundle Cutting Width (Optional)........ 7.48” x 11.81”
Bundle Cutting Height (Optional)....... 2.75” to 5.51”
Feed Length/Index...... 15.86”
Max. Feed.............. 255.9”
Length......... 79.13”
Width.......... 78.75”
Height......... 70.3”
Bed Height..... 31.1”
Net Weight..... 3,509 lbs.
Shipping Weight 3,766 lbs.
Machine Features:
• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
