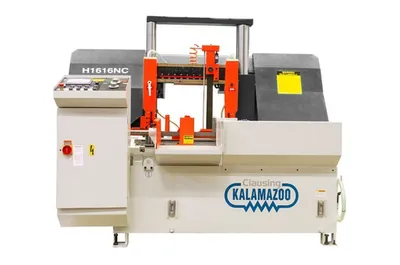

New 2025 Clausing Kalamazoo H1616NC Double Column Automatic Horizontal Bandsaw 16.5” x 16.5” Max Rectangular Capacity

Machine Style.......... Automatic
Drive Type............. Inverter Controlled Variable Speed
*Motor................. 7.5 Hp, 230v 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10.5 gallons
Blade Speeds (Variable speed).......... 57-378 fpm
Blade Size (W x T x L)................. 1.5” x .05” x 187.8”
Blade Tension.......... Hydraulic
Coolant Recirculating
Coolant Capacity....... 22.5 gallons
90° Cutting Capacity
Round....... 16.5”
Square...... 16.5”
Rectangular 16.5” x 16.5”
Bundle Cutting Width (Optional)........ 7.48” x 14.17”
Bundle Cutting Height (Optional)....... 3.94” to 7.04”
Feed Length/Index...... 19.8”
Max. Feed.............. 255.9”
Length......... 110.4”
Width.......... 100.8”
Height......... 74.4”
Bed Height..... 28.5”
Net Weight..... 4,673 lbs.
Shipping Weight 4,901 lbs.

Machine Features:

• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
