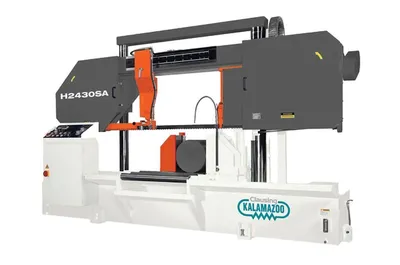

New 2025 Clausing Kalamazoo H2430SA Double Column Semi-Automatic Horizontal Bandsaw 24.4” x 30” Max Rectangular Capacity

Machine Style.......... Semi-Automatic
Drive Type............. Infinitely variable speed
*Motor................. 10 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 12.5 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L) 2” x .063” x 283”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 25 gallons
90° Cutting Capacity
Round................ 24.4”
Square............... 24.4”
Rectangular (H x W).. 24.4” x 30”
Length................. 47.2”
Width.................. 140”
Height................. 93”
Bed Height............. 23.6”
Net Weight............. 7,700 lbs.
Shipping Weight........ 8,580 lbs.

Machine Features:
• Oversized precision ground, large dual columns
• Cross link connecting two columns for enhanced structural strength
• Specially designed gearbox for high lateral pressure
• Heavy duty inverter blade drive system
• LED speed indicator
• Cam lock carbide blade guides with bearing guides
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized power driven blade brush
• PLC control
• Ergonomically located independent control station
• Precision feed pressure & feed rate dual valve system
• Work height selector & air gap eliminator
• “Last cut” or “keep on” selector
• Split vise jaws
• Full stroke ductile cast iron split vise
• Hydraulically powered in-feed lift roller for forward and backward feeding
• Ductile cast iron vises with replaceable hardened wear plates
• Proximity switch for sensing blade slippage or breakage
• Blade “clip” device for easy blade change
• Discharge roller workbed with built-in coolant return
• Additional flushing hose
• Bi-metal saw blade
• Tool box, leveling pads and an additional wire brush
• Operation & parts manual
• Two (2) year limited warranty
