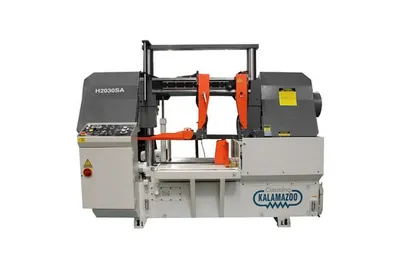

New 2025 Clausing Kalamazoo H2030SA Double Column Semi-Automatic Horizontal Bandsaw 20” x 29.5” Max Rectangular Capacity

Machine Style.......... Semi-Automatic
Drive Type............. Infinitely Variable Speed
*Motor................. 7.5 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 2” x .063” x 238”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 21.5 gallons
90° Cutting Capacity
Round................ 20”
Square............... 20”
Rectangular.......... 20” x 29.5”
Length................. 122.9”
Width.................. 42.2”
Height................. 82.1”
Bed Height............. 27.5”
Net Weight............. 5,016 lbs.
Shipping Weight........ 5,720 lbs.

Machine Features:
• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Last cut selector switch
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
