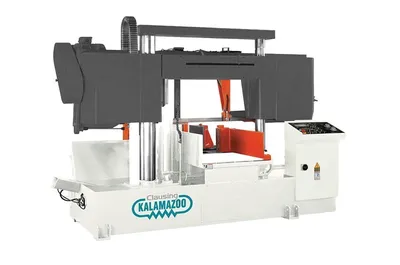

New 2025 Clausing Kalamazoo H3133NC Horizontal Bandsaw offers automatic cutting with a 31.5" x 33.5" capacity. Features inverter control, hydraulic tension, tungsten guide, and SNC controller. Motor output includes 10 Hp saw blade power. Weighs 13,200 lbs.
Machine Style.......... Automatic
Drive Type............. Inverter Controlled
Round........ 31.5”
Square....... 31.5” x 31.5”
Rectangle.... 31.5” x 33.5”
Speed........ 15-80 m/min (49-293 fpm)
Size......... 27’ 3” x 2.5” x .062”
Tension...... Hydraulic (Automatic Blade Breakage Detector)
Guide........ Tungsten Carbide Blade Guide
Cleaning..... Powered Wire Brush
*Motor Output
Saw Blade.... 10 Hp 230v 3ph
Hydraulic.... 3 Hp
Coolant...... ¼ Hp
Tank Capacity
Hydraulic Oil 100L
Coolant...... 120L
Feeding
Mode........... Hydraulic, Automatic, SNC controller
Length......... Single Stroke: 16.5” , Multiple: max. 256″
Vise Control... 2 full stroke hydraulic cylinder vises (one set being shuttle vices)
Minimum clamped width: 10.6″
Net Weight......... 13,200 lbs.
Gross Weight......... 19,360 lbs.
Floor Space (L x W x H).......... 153” x 92” x 116”
