Introducing the New 2025 Blaze Laser Cell OPTX 1K from PRODUCTIVE ROBOTICS! Featuring a 7-axis collaborative Blaze Laser robot, it offers a 61" reach, and no programming requirement. Complete welding cell with advanced safety and monitoring features.

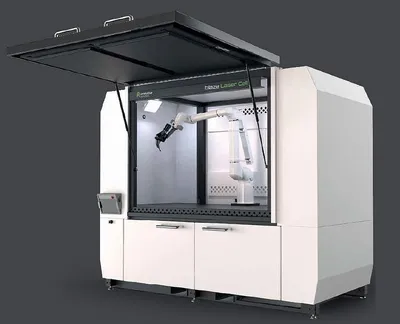

Blaze Laser Welding Cell OPTX 1K
Includes:
•	Blaze Robot
•	Miller OptX 1k Laser
•	Miller Cobot Kit
•	Miller Wire Feeder
•	Miller Startup Kit
•	Enclosed Welding Cell
•	Blaze Welding Software
•	4' x 8' Siegmund Table with High Intensity LED Lighting
•	Fume Extraction
•	Live Video Monitoring

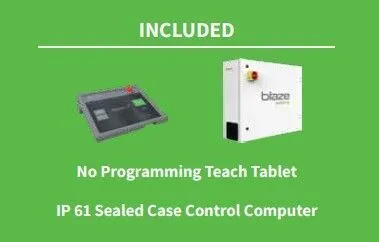

•	No Programming Teach Tablet
Dimensions Overall:
•	2464 mm x 1905 mm x 2185 mm
•	(97”w x 75”d x 86”h)
•	Table Height: 914 mm (36”)
•	Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
•	Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
•	LightWELD Interface: Low Voltage enable signal cable
•	Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
•	Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
•	Wire Reel Capacity: Up to 30 lbs. (12” diameter)
•	Compatible Wire Materials:
•	Steel, Stainless Steel, Aluminum, Copper, Nickel
•	Power Requirements: 115 - 230V 50/60 Hz

LightWeld® Welder
•	Welding Only: LightWELD 1500
•	Welding & Cleaning: LightWELD 1500 XC
•	Laser Power Output: Up to 2 kW
•	Input Power: 200-240VAC, 3PH, 50/60 Hz, 24 Amps
•	Presets: Up to 100
•	Process Gas: Argon/Nitrogen
•	Working Pressure: 15-30 psi (1-2 Bar)
•	Cooling: Air-Cooled (No External Chiller Required
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
Lighting: High intensity LED
Fume Extraction
Single-Side, Single Pass Material Weld Capability:
Stainless Steel, mild steel, galvanized steel,
aluminum up to 4 mm
