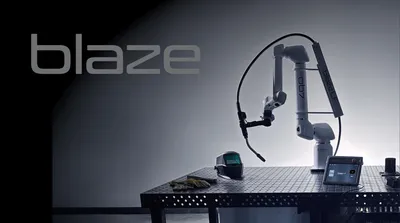

Introducing the New 2025 Blaze Laser OPTX 1K LF Package from PRODUCTIVE ROBOTICS! Featuring a 7-axis collaborative Blaze Laser robot, it offers a 61" reach, and no programming requirement. Complete welding cell with advanced safety and monitoring features.
Blaze Laser OPTX 1K LF Package
Includes:
Blaze Robot
Rolling Stand
Miller OptX 1k Laser
Miller Cobot Kit
Miller Wire Feeder
Miller Startup Kit
Enclosed Welding Cell
Blaze Welding Software
4' x 8' Siegmund Table
No Programming Teach Tablet
Dimensions
Overall:
2464 mm x 1905 mm x 2185 mm
(97”w x 75”d x 86”h)
Table Height: 914 mm (36”)
Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive:
Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
LightWELD Interface: Low Voltage enable signal cable
Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
Wire Reel Capacity: Up to 30 lbs. (12” diameter)
Compatible Wire Materials:
Steel, Stainless Steel, Aluminum, Copper, Nickel
Power Requirements: 115 - 230V 50/60 Hz
LightWeld® Welder:
Welding Only: LightWELD 1500
Welding & Cleaning: LightWELD 1500 XC
Laser Power Output: Up to 2 kW
Input Power: 200-240VAC, 3PH, 50/60 Hz, 24 Amps
Presets: Up to 100
Process Gas: Argon/Nitrogen
Working Pressure: 15-30 psi (1-2 Bar)
Cooling: Air-Cooled (No External Chiller Required)
General:
Single-Side, Single Pass Material Weld Capability:
Stainless Steel, mild steel, galvanized steel,
aluminum up to 4 mm
