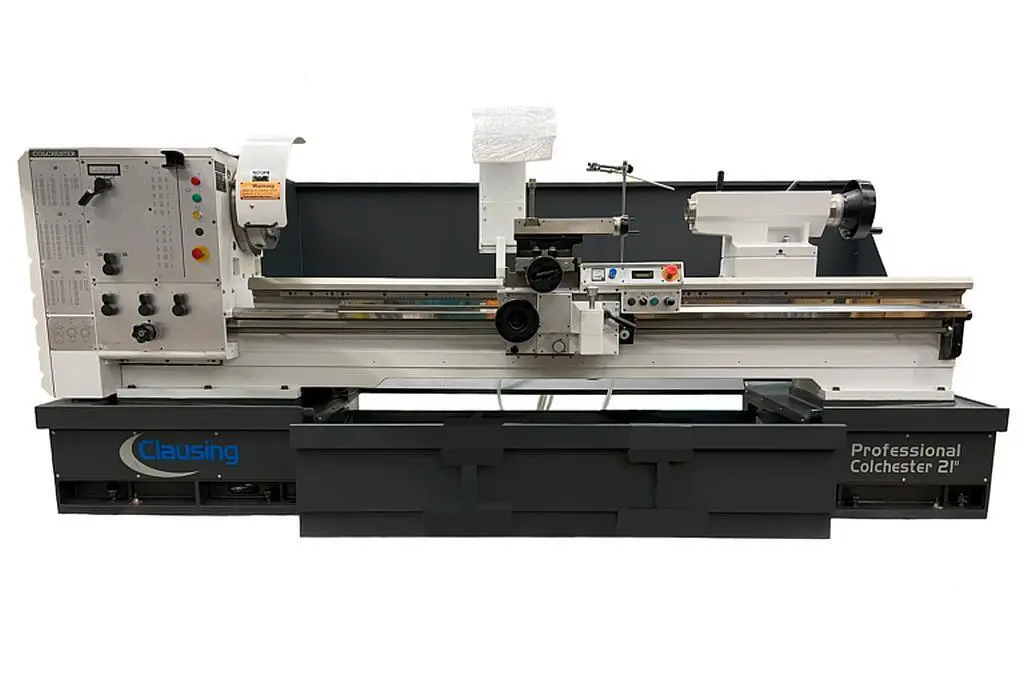

New 2025 Clausing Colchester 8119VSJ 21" x 120" Variable Speed Gap Bed Engine Lathe "In Stock Now"

Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Variable Speed
• Spindle (Hp)..........15
• Swing Over Bed (inch)..........21.81
• Swing Over Cross slide (inch)..........14.57
• Swing in Gap (inch)..........32.68
• Distance Between Centers (inch)..........120
• Bed Width (inch)..........15.75
• Spindle Bore (inch)..........4.09
• Spindle Nose (camlock)..........D1-11
• Spindle Nose Taper..........5 MT
• Number of Spindle Speeds..........3 infinitely variable
• Spindle Speed RPM Range..........18-1800
• Cross Slide Travel (inch)..........11.81
• Width of Cross Slide (inch)..........8
• Top Slide Travel (compound) (inch)..........7.5
• Tailstock Quill Diameter (inch)..........3.74
• Tailstock Quill Travel (inch)..........5.7
• Tailstock Quill Taper..........6 MT
• Longitudinal Feed Range (in/rev)..........0.0016 – 0.11
• Cross Feed Range (in/rev)..........0.0008 – 0.055
• Number of Inch Pitches..........73
• Range of Inch Pitches..........2 – 84
• Number of Metric Pitches..........51
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........27
• Range of Diametral Pitches..........8 – 72
• Number of Module Pitches..........27
• Range of Module Pitches..........0.2 – 3.5
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........180 x 51 x 51
• Machine Weight (lbs.)..........7,942

Machine Features:
• 120” between center distance
• 21” Swing over bed
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 18 to 1800 RPM with LCD display on the headstock
• Dynamic spindle brake via the inverter
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Interlocking chuck guard
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• 2 Axis power rapid traverse available from one lever mounted on the saddle
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Cast Iron Plinths with full length splash guard and traveling chip guard
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Able to reverse leadscrew while chuck is turning for faster thread cutting
• Extra wide heavy duty cast iron bed with triangular webs for torsional stiffness and excellent chip clearance
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
