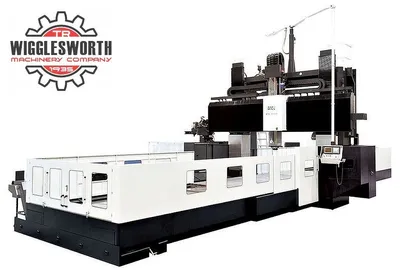

2025 KAO MING Model KMC-425EP Gantry type Plano Machining Center

MACHINE FEATURES:
•Double column design provides stability while heavy duty cutting
•Moveable Crossbeam (W-Axis) for increased rigidity for varied workpieces

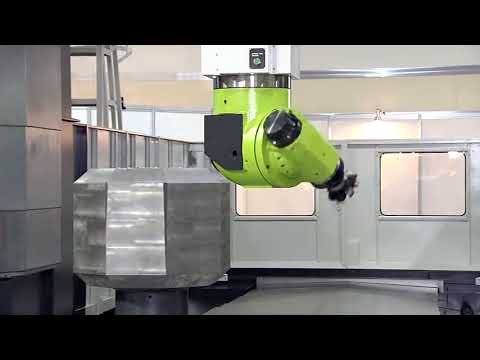

•Multi-Face machining capability with Automatic Universal Head *Option
•Spindle Heads supported by rigid 15.75” x 15.75” Z-Axis Ram
•2-Station ACC (Automatic Attachment Changer) Vertical to Horizontal Head Change
•All Ball Screws are Preloaded and Inner Cooled for excellent accuracy
•6,000 RPM with Vertical Spindle (30/35 HP) . . 3,500 RPM with Horizontal Spindle
•Splashguard
•60 Tool Magazine ATC . . . 90 Tool Magazine *Option
•Major components are heavily ribbed reinforced for outstanding stability
•Refrigerated Spindle Chiller

MACHINE SPECIFICATIONS:
Distance Between Columns:............ 98.4” (2500 mm)
Table:
Table Size Overall................... 78.74” x 157.5” (2000 x 4000)
Table Load........................... 28,600 Lbs. (13000 Kg)
X-Axis Travel........................ 166.5” (4230 mm)
Y-Axis Travel........................ 125.9” (3200 mm)
Z-Axis Travel........................ 27.56” (700 mm)
W-Axis Travel........................ 43.3” (1100 mm)
Vertical Spindle Nose to Table....... 1.96”- 72.8” (50.0 – 1850 mm)
Horizontal Spindle Center to Table... 5.07”- 71.0” (129 – 1804 mm)

Spindle:
Spindle Taper........................ CT-50
Pull Stud............................ CT-50
Max Spindle Speed Vertical........... 6,000 RPM
Max Spindle Speed Horizontal......... 3,500 RPM
Horsepower........................... 30/34 HP (22/25 kw)
Transmission......................... Direct Drive

Feed Rates:
Rapid Traverse X, Y, Z, W-Axis....... 472 IPM, 393 IPM, 393 IPM, 118 IPM
Feed Rate X, Y, Z, W-Axis............ 0.1 - 196 IPM

Automatic Tool Changer:
Magazine Capacity.................... 60 Tool Dual Arm 90* Optional*
Maximum Tool Length.................. 15.7” (400 mm)
Maximum Tool Diameter................ Ø4.92” (Ø125 mm)
Without Adjacent Tool................ Ø9.84” (Ø250 mm)
Maximum Tool Weight.................. 55 LBS. (25 Kg.)

Machine Size:
Floor Area (L x W x H)............... 410” x 278” x 256” (10400 x 7050 x 6500 mm)
Net Weight........................... 124,960 Lbs. (56800 Kg)
Air Required......................... 85 PSI
Power required....................... 220 Volt AC, 3 Phase, 80 KVA
