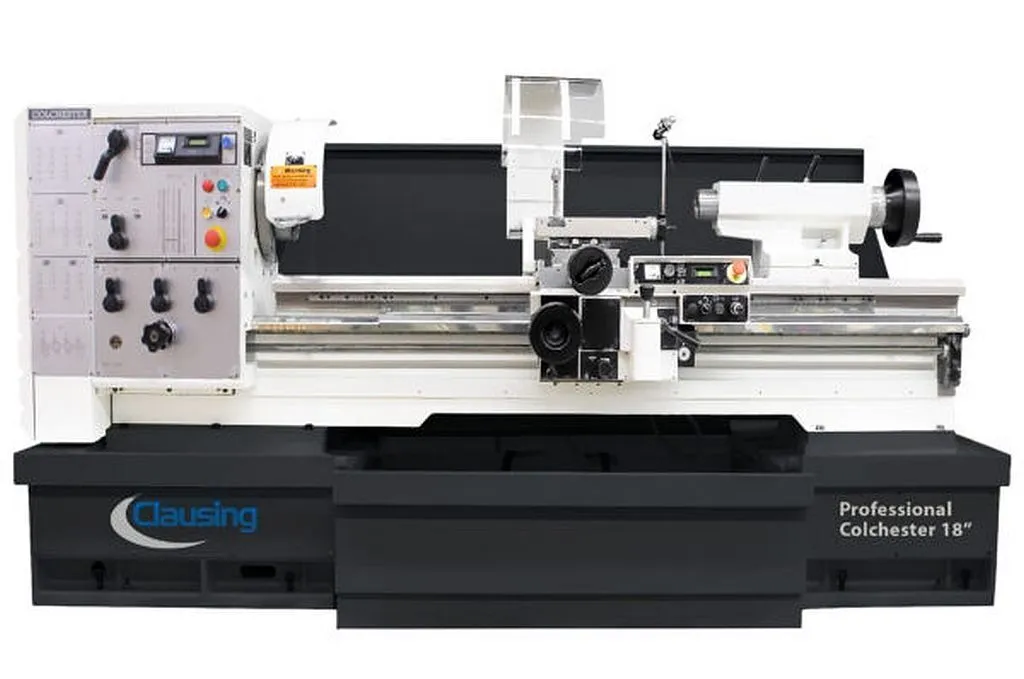

New 18" x 40" Clausing Colchester 8053VSJ Variable Speed Manual Gap Bed Engine Lathe "In Stock Now"
Have one to sell?
ConditionNew
New
Explore the new Clausing Colchester 8053VSJ variable speed lathe! With 18” swing over bed, 40” center distance, and 20-2000 RPM speed range, experience precision and durability. Features include a dynamic spindle brake, dovetail guide, and robust design.
Specifications:
• Machine Style.......... Engine Lathe
• Spindle Speed Control.......... Variable Speed
• Spindle (Hp).......... 15
• Swing Over Bed (inch).......... 18
• Swing Over Cross slide (inch).......... 10.62
• Swing in Gap (inch).......... 28.74
• Distance Between Centers (inch).......... 40
• Bed Width (inch).......... 15.75
• Spindle Bore (inch).......... 3
• Spindle Nose (camlock).......... D1-8
• Spindle Nose Taper.......... 5 MT
• Number of Spindle Speeds.......... 3 infinitely variable
• Spindle Speed RPM Range.......... 20-2000
• Cross Slide Travel (inch).......... 11.81
• Width of Cross Slide (inch).......... 8
• Top Slide Travel (compound) (inch).......... 7.5
• Tailstock Quill Diameter (inch).......... 3.74
• Tailstock Quill Travel (inch).......... 5.7
• Tailstock Quill Taper.......... 6 MT
• Longitudinal Feed Range (in/rev).......... 0.0016 – 0.11
• Cross Feed Range (in/rev).......... 0.0008 – 0.055
• Number of Inch Pitches.......... 73
• Range of Inch Pitches.......... 2 – 84
• Number of Metric Pitches.......... 51
• Range of Metric Pitches.......... 0.2 – 14
• Number of Diametral Pitches.......... 27
• Range of Diametral Pitches.......... 8 – 72
• Number of Module Pitches.......... 27
• Range of Module Pitches.......... 0.2 – 3.5
• Coolant System.......... Yes
• Voltage Required.......... 230/460
• Phase.......... 3
• Machine Foot Print (LxWxH) (inch).......... 101 x 51 x 51
• Machine Weight (lbs.).......... 5,365
Machine Features:
• 40” between center distance
• 18” Swing over bed
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 20 to 2000 RPM with LCD display on the headstock
• Dynamic spindle brake via the inverter
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Interlocking chuck guard
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• 2 Axis power rapid traverse available from one lever mounted on the saddle
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Cast Iron Plinths with full length splash guard and traveling chip guard
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Able to reverse leadscrew while chuck is turning for faster thread cutting
• Extra wide heavy duty cast iron bed with triangular webs for torsional stiffness and excellent chip clearance
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Explore the new Clausing Colchester 8053VSJ variable speed lathe! With 18” swing over bed, 40” center distance, and 20-2000 RPM speed range, experience precision and durability. Features include a dynamic spindle brake, dovetail guide, and robust design.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Infinitely variable speed lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes.
These Variable Speed lathes use a State-of-Art AC Spindle Drive to control the motor. A belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into one (1) of three (3) locations (Low, Medium, High) then adjusting a pot control knob to adjust the speed output.
Imperial
| Swing | 18" |
| Centers | 40" |
| Spindle Bore | 3" |
| Power | 15 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 10.62" |
| Dimensions | 101 x 51 x 51 |
| Weight | 5,365 Lbs. |
Specifications:
• Machine Style.......... Engine Lathe
• Spindle Speed Control.......... Variable Speed
• Spindle (Hp).......... 15
• Swing Over Bed (inch).......... 18
• Swing Over Cross slide (inch).......... 10.62
• Swing in Gap (inch).......... 28.74
• Distance Between Centers (inch).......... 40
• Bed Width (inch).......... 15.75
• Spindle Bore (inch).......... 3
• Spindle Nose (camlock).......... D1-8
• Spindle Nose Taper.......... 5 MT
• Number of Spindle Speeds.......... 3 infinitely variable
• Spindle Speed RPM Range.......... 20-2000
• Cross Slide Travel (inch).......... 11.81
• Width of Cross Slide (inch).......... 8
• Top Slide Travel (compound) (inch).......... 7.5
• Tailstock Quill Diameter (inch).......... 3.74
• Tailstock Quill Travel (inch).......... 5.7
• Tailstock Quill Taper.......... 6 MT
• Longitudinal Feed Range (in/rev).......... 0.0016 – 0.11
• Cross Feed Range (in/rev).......... 0.0008 – 0.055
• Number of Inch Pitches.......... 73
• Range of Inch Pitches.......... 2 – 84
• Number of Metric Pitches.......... 51
• Range of Metric Pitches.......... 0.2 – 14
• Number of Diametral Pitches.......... 27
• Range of Diametral Pitches.......... 8 – 72
• Number of Module Pitches.......... 27
• Range of Module Pitches.......... 0.2 – 3.5
• Coolant System.......... Yes
• Voltage Required.......... 230/460
• Phase.......... 3
• Machine Foot Print (LxWxH) (inch).......... 101 x 51 x 51
• Machine Weight (lbs.).......... 5,365
Machine Features:
• 40” between center distance
• 18” Swing over bed
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 20 to 2000 RPM with LCD display on the headstock
• Dynamic spindle brake via the inverter
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Interlocking chuck guard
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• 2 Axis power rapid traverse available from one lever mounted on the saddle
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Cast Iron Plinths with full length splash guard and traveling chip guard
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Able to reverse leadscrew while chuck is turning for faster thread cutting
• Extra wide heavy duty cast iron bed with triangular webs for torsional stiffness and excellent chip clearance
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
