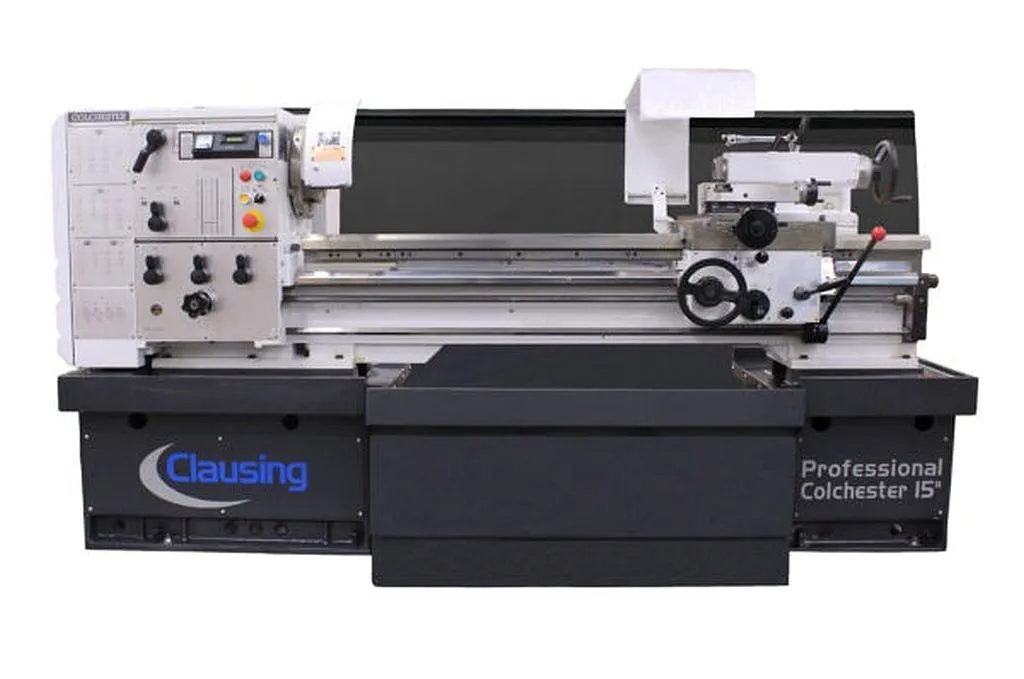

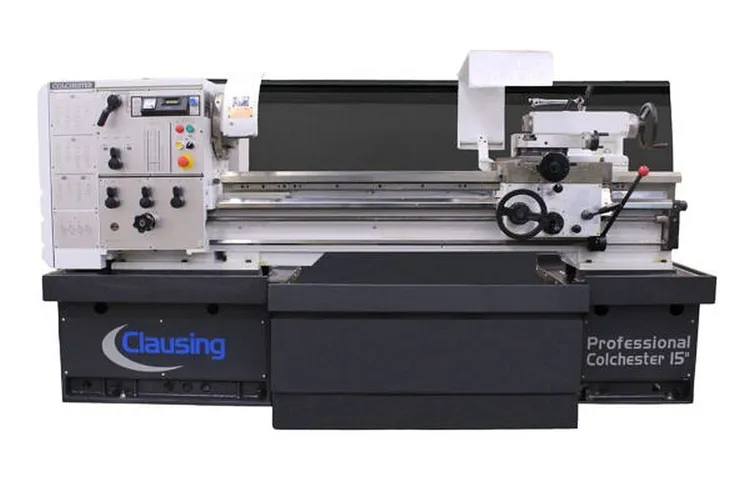

NEW 2025 Clausing Colchester 8042SS - Geared Head Lathe with 15.75” Swing over Bed, Manual Gap Bed Engine Lathe

Machine Style.......... Engine Lathe
Spindle Speed Control.......... Geared Head
Spindle (Hp).......... 7.5
Swing Over Bed (inch).......... 15.75
Swing Over Cross slide (inch).......... 9.7
Swing in Gap (inch).......... 23
Disance Between Centers (inch).......... 25
Bed Width (inch).......... 12.5
Spindle Bore (inch).......... 2.12
Spindle Nose (camlock).......... D1-6
Spindle Nose Taper.......... 4 MT
Number of Spindle Speeds.......... 16
Spindle Speed RPM Range.......... 25-2000
Cross Slide Travel (inch).......... 9.8
Width of Cross Slide (inch).......... 7.09
Top Slide Travel (compound) (inch).......... 5.1
Tailstock Quill Diameter (inch).......... 2.8
Tailstock Quill Travel (inch).......... 5.5
Tailstock Quill Taper.......... 5 MT
Longitudinal Feed Range (in/rev).......... (0.0014 – 0.048)
Cross Feed Range (in/rev).......... (0.0007 – 0.024)
Number of Inch Pitches.......... 56
Range of Inch Pitches .......... 2 – 56
Number of Metric Pitches.......... 51
Range of Metric Pitches.......... 0.2 – 14
Number of Diametral Pitches.......... 20
Range of Diametral Pitches.......... 8 – 56
Number of Module Pitches.......... 20
Range of Module Pitches.......... 0.2 – 3.5
Coolant System.......... Yes
Voltage Required.......... 230/460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 75 x 63 x 44
Machine Weight (lbs.).......... 2,970

Machine Features:
• 25” between center distance
• 15.75” Swing over bed
• Soft start inverter to ramp up to higher speeds
• 16 headstock gear ranges from 25 to 2500 RPM for a variety of work at top efficiency
• Headstock shafts are splined and turn on anti-friction bearings with the headstock gears hardened and ground.
• Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• All bedways are induction hardened and precision ground
• Precision tapered roller spindle bearings
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted one-shot lubrication pump
• Cast iron plinths with full length splash guard and traveling chip guard
• Foot spindle brake
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Leadscrew reversing box for faster thread cutting – reversal of the leadscrew with the spindle running at low speed
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Anti-friction carriage ways with low friction “Moglice” PTFE material fitted between the saddle and bed for minimal bedwear and increased machine life
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
