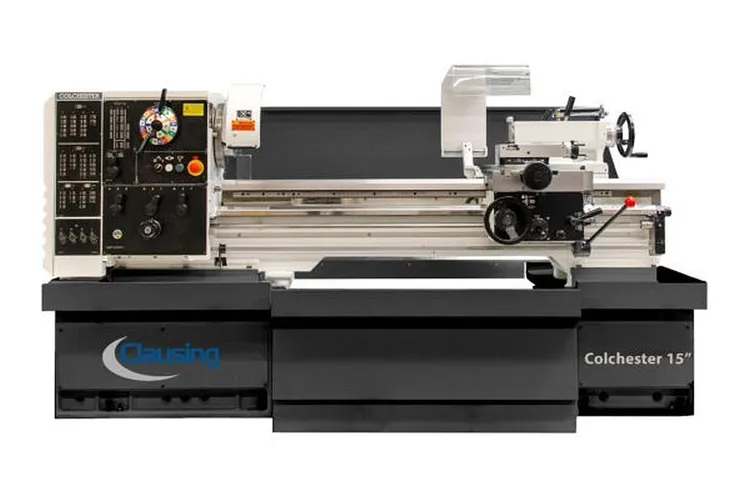

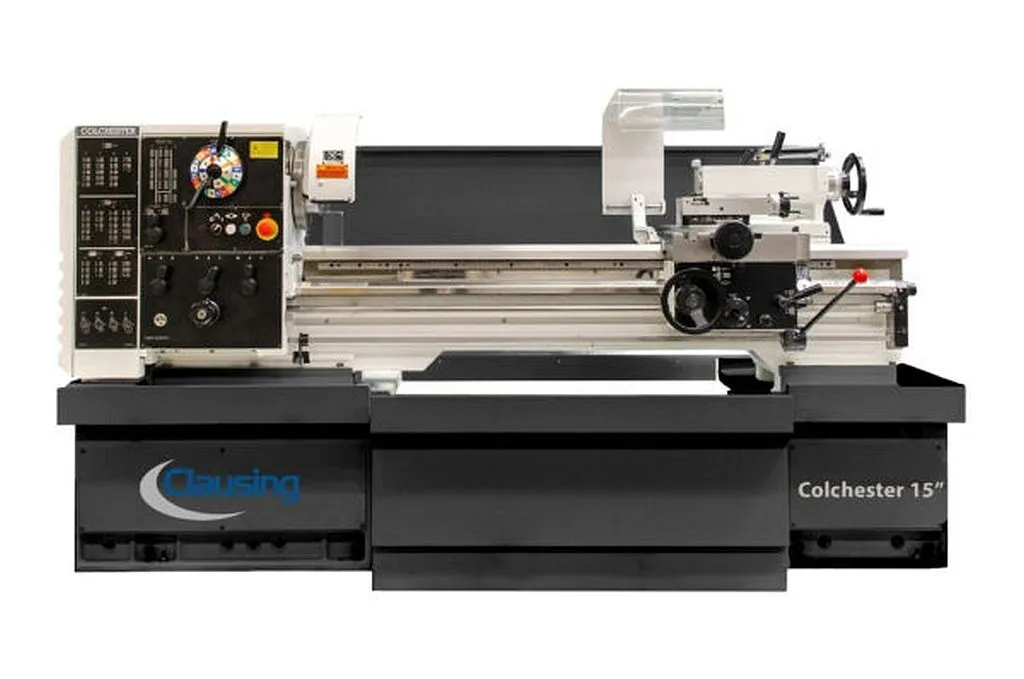

New Clausing Colchester 8043SS Geared Head Manual Gap Bed Engine Lathe "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Explore precision with the new Clausing Colchester 8043SS Lathe. Features a 15.75" swing, 50" centers, 2.12" spindle bore, and 7.5 hp. Geared head, forced lubrication, and dovetail guide ensure efficiency and durability. Suitable for any machine shop.
Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Geared Head
• Spindle (Hp)..........7.5
• Swing Over Bed (inch)..........15.75
• Swing Over Cross slide (inch)..........9.7
• Swing in Gap (inch)..........23
• Disance Between Centers (inch)..........50
• Bed Width (inch)..........12.5
• Spindle Bore (inch)..........2.12
• Spindle Nose (camlock)..........D1-6
• Spindle Nose Taper..........4 MT
• Number of Spindle Speeds..........16
• Spindle Speed RPM Range..........25-2000
• Cross Slide Travel (inch)..........9.8
• Width of Cross Slide (inch)..........7.09
• Top Slide Travel (compound) (inch)..........5.1
• Tailstock Quill Diameter (inch)..........2.8
• Tailstock Quill Travel (inch)..........5.5
• Tailstock Quill Taper..........5 MT
• Longitudinal Feed Range (in/rev)..........(0.0014 – 0.048)
• Cross Feed Range (in/rev)..........(0.0007 – 0.024)
• Number of Inch Pitches..........56
• Range of Inch Pitches .........2 – 56
• Number of Metric Pitches..........51
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........20
• Range of Diametral Pitches..........8 – 56
• Number of Module Pitches..........20
• Range of Module Pitches..........0.2 – 3.5
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........99 x 63 x 44
• Machine Weight (lbs.)..........3,300
Machine Features:
• 50” between center distance
• 15.75” Swing over bed
• Soft start inverter to ramp up to higher speeds
• 16 headstock gear ranges from 25 to 2500 RPM for a variety of work at top efficiency
• Headstock shafts are splined and turn on anti-friction bearings with the headstock gears hardened and ground.
• Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• All bedways are induction hardened and precision ground
• Precision tapered roller spindle bearings
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted one-shot lubrication pump
• Cast iron plinths with full length splash guard and traveling chip guard
• Foot spindle brake
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Leadscrew reversing box for faster thread cutting – reversal of the leadscrew with the spindle running at low speed
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Anti-friction carriage ways with low friction “Moglice” PTFE material fitted between the saddle and bed for minimal bedwear and increased machine life
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Explore precision with the new Clausing Colchester 8043SS Lathe. Features a 15.75" swing, 50" centers, 2.12" spindle bore, and 7.5 hp. Geared head, forced lubrication, and dovetail guide ensure efficiency and durability. Suitable for any machine shop.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Infinitely variable speed lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes.
These Variable Speed lathes use a State-of-Art AC Spindle Drive to control the motor. A belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into one (1) of three (3) locations (Low, Medium, High) then adjusting a pot control knob to adjust the speed output.
Imperial
| Swing | 15.75" |
| Centers | 50" |
| Spindle Bore | 2.12" |
| Power | 7.5 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 9.7" |
| Dimensions | 99" x 63" x 44" |
| Weight | 3,300Lbs. |
Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Geared Head
• Spindle (Hp)..........7.5
• Swing Over Bed (inch)..........15.75
• Swing Over Cross slide (inch)..........9.7
• Swing in Gap (inch)..........23
• Disance Between Centers (inch)..........50
• Bed Width (inch)..........12.5
• Spindle Bore (inch)..........2.12
• Spindle Nose (camlock)..........D1-6
• Spindle Nose Taper..........4 MT
• Number of Spindle Speeds..........16
• Spindle Speed RPM Range..........25-2000
• Cross Slide Travel (inch)..........9.8
• Width of Cross Slide (inch)..........7.09
• Top Slide Travel (compound) (inch)..........5.1
• Tailstock Quill Diameter (inch)..........2.8
• Tailstock Quill Travel (inch)..........5.5
• Tailstock Quill Taper..........5 MT
• Longitudinal Feed Range (in/rev)..........(0.0014 – 0.048)
• Cross Feed Range (in/rev)..........(0.0007 – 0.024)
• Number of Inch Pitches..........56
• Range of Inch Pitches .........2 – 56
• Number of Metric Pitches..........51
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........20
• Range of Diametral Pitches..........8 – 56
• Number of Module Pitches..........20
• Range of Module Pitches..........0.2 – 3.5
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........99 x 63 x 44
• Machine Weight (lbs.)..........3,300
Machine Features:
• 50” between center distance
• 15.75” Swing over bed
• Soft start inverter to ramp up to higher speeds
• 16 headstock gear ranges from 25 to 2500 RPM for a variety of work at top efficiency
• Headstock shafts are splined and turn on anti-friction bearings with the headstock gears hardened and ground.
• Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• All bedways are induction hardened and precision ground
• Precision tapered roller spindle bearings
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted one-shot lubrication pump
• Cast iron plinths with full length splash guard and traveling chip guard
• Foot spindle brake
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Leadscrew reversing box for faster thread cutting – reversal of the leadscrew with the spindle running at low speed
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Anti-friction carriage ways with low friction “Moglice” PTFE material fitted between the saddle and bed for minimal bedwear and increased machine life
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
