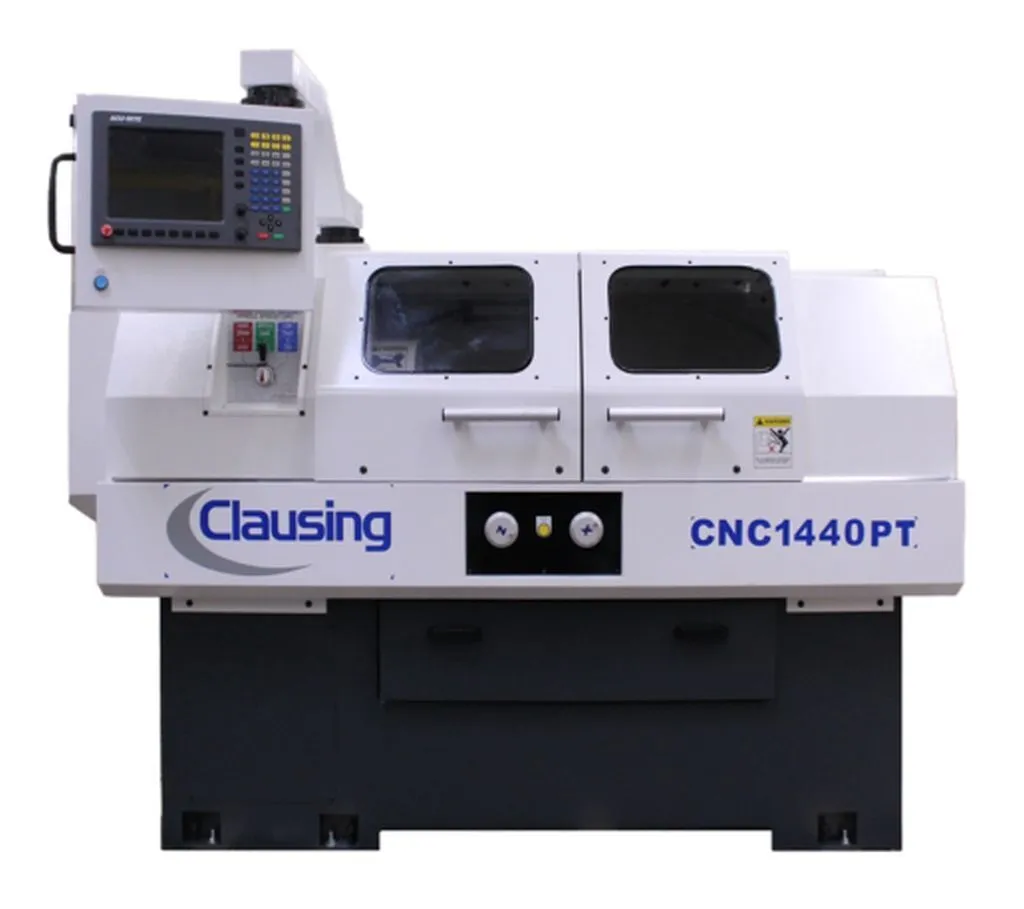

New Clausing CNC1440PT 14″ x 40″ CNC Teach Lathe with Acu-Rite Turn Power Control "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Clausing/Acu-Rite Turn Power CNC Teach Lathe. Exclusive Acu-Rite system control, 14” Swing over bed, 3 Gear Infinitely Variable Speed Ranges 30 – 2000rpm, 5 Hp Spindle motor, 40” between centers, 6.7” Swing over the cross slide, 1.5” Spindle Bore, D1-4 camlock spindle nose, 1.75” Tailstock quill diameter with 3 morse taper bore. 230/460 Volts, 3 Phase
Specifications:
• Machine Style..........CNC Teach Lathe
• CNC Control..........Acu-Rite Turn Power
• Spindle Speed Control..........Variable AC Drive
• Spindle (Hp)..........5
• Swing Over Bed (inch)..........14
• Swing Over Cross slide (inch)..........6.7
• Swing in Gap (inch)..........N/A
• Distance Between Centers (inch).........40
• Bed Width (inch)..........8.5
• Spindle Bore (inch)..........1.5
• Spindle Nose (camlock)..........D1-4
• Spindle Nose Taper..........5 MT
• Number of Spindle Speeds..........3 infinitely variable
• Spindle Speed RPM Range..........30 – 2000
• X-Axis Rapid Travers (in/min)..........100
• Z-Axis rapid Traverse (in/min)..........100
• X-Axis Thrust (nm)..........6.3
• Z-Axis Thrust (nm)..........6.3
• X-Axis Ballscrew..........25 x 5 mm
• Z-Axis Ballscrew..........32 x 5 mm
• Positioning Accuracy (inch)..........0.0004
• Repeatability (inch)..........0.0002
• Tailstock Quill Diameter (inch)..........1.75
• Tailstock Quill Travel (inch)..........4.75
• Tailstock Quill Taper..........3 MT
• Coolant System..........Yes
• Coolant System Capacity (gal)..........20
• Voltage Required..........230V / 13KVA
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........81.5 x 53.5 x 66.3
• Machine Weight (lbs.)..........2,640
Machine Features:
• Acu-Rite TURN POWER control system
• X and Z MPG hand wheels
• 40″ between center distance
• 14″ swing over bed
• 3 speed Infinitely Variable Speed headstock with speed ranging from 30-2000 RPM
• Constant surface speed allows ideal spindle speed cutting solutions within the selected gear range
• All headstock gears are hardened and “REISHAUER” ground
• Auto lubrication system with low oil alarm continuously supplies oil to the ball screws, carriage, and cross slide
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by an oil reserve and splashed onto key componets
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted wipers kept bed rails clean from contamination and lubricated with auto lube system
• Cast Iron plinths with full enclosure and interlocking doors provide for stable clean working area
• Interlocking chuck guard for manual operation
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Clausing/Acu-Rite Turn Power CNC Teach Lathe. Exclusive Acu-Rite system control, 14” Swing over bed, 3 Gear Infinitely Variable Speed Ranges 30 – 2000rpm, 5 Hp Spindle motor, 40” between centers, 6.7” Swing over the cross slide, 1.5” Spindle Bore, D1-4 camlock spindle nose, 1.75” Tailstock quill diameter with 3 morse taper bore. 230/460 Volts, 3 Phase
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Turn Power CNC Teach Lathes
Clausing Turn Power CNC Teach Lathes with exclusive Acu-Rite Turn Power Control is a simple easy to use control with canned cycle and soft key programming. DRO mode gives easy manual operation to this CNC lathe. The quality built into every machine translates into real long term performance for your application. This ability to operate the machine manual or full CNC machine makes it exceptional for Educational Facilities, Toolrooms, R&D facilities, maintenance shops, and small production jobs. Built in safety features (interlocked chuck guard, and sliding door, with machine and control E-stops linked) needed for many installations. Acu-Rite TURNPOWER a contouring control the enables you to program conversational machining operations right at the machine in easy-to-use conversational language and soft keys. 12.1” color LED Display, 1.4 GHz Dual Core Celeron Processor, 2.5GB CFAST (SATS) user internal storage.
Imperial
| Swing | 14" |
| Machining Length | 40" |
| # Axis | 2 |
| Bar Capacity | 1.5" |
| Power | 5 hp |
| Max RPM | 2,000 RPM |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC |
| Dimensions | 81.5" x 53.5" x 66.3" |
| Weight | 2,640Lbs. |
Specifications:
• Machine Style..........CNC Teach Lathe
• CNC Control..........Acu-Rite Turn Power
• Spindle Speed Control..........Variable AC Drive
• Spindle (Hp)..........5
• Swing Over Bed (inch)..........14
• Swing Over Cross slide (inch)..........6.7
• Swing in Gap (inch)..........N/A
• Distance Between Centers (inch).........40
• Bed Width (inch)..........8.5
• Spindle Bore (inch)..........1.5
• Spindle Nose (camlock)..........D1-4
• Spindle Nose Taper..........5 MT
• Number of Spindle Speeds..........3 infinitely variable
• Spindle Speed RPM Range..........30 – 2000
• X-Axis Rapid Travers (in/min)..........100
• Z-Axis rapid Traverse (in/min)..........100
• X-Axis Thrust (nm)..........6.3
• Z-Axis Thrust (nm)..........6.3
• X-Axis Ballscrew..........25 x 5 mm
• Z-Axis Ballscrew..........32 x 5 mm
• Positioning Accuracy (inch)..........0.0004
• Repeatability (inch)..........0.0002
• Tailstock Quill Diameter (inch)..........1.75
• Tailstock Quill Travel (inch)..........4.75
• Tailstock Quill Taper..........3 MT
• Coolant System..........Yes
• Coolant System Capacity (gal)..........20
• Voltage Required..........230V / 13KVA
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........81.5 x 53.5 x 66.3
• Machine Weight (lbs.)..........2,640
Machine Features:
• Acu-Rite TURN POWER control system
• X and Z MPG hand wheels
• 40″ between center distance
• 14″ swing over bed
• 3 speed Infinitely Variable Speed headstock with speed ranging from 30-2000 RPM
• Constant surface speed allows ideal spindle speed cutting solutions within the selected gear range
• All headstock gears are hardened and “REISHAUER” ground
• Auto lubrication system with low oil alarm continuously supplies oil to the ball screws, carriage, and cross slide
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by an oil reserve and splashed onto key componets
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted wipers kept bed rails clean from contamination and lubricated with auto lube system
• Cast Iron plinths with full enclosure and interlocking doors provide for stable clean working area
• Interlocking chuck guard for manual operation
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
