Used MILLER BIG BLUE 500D | WELDERS, ARC
Have one to sell?
ConditionUsed
1 available

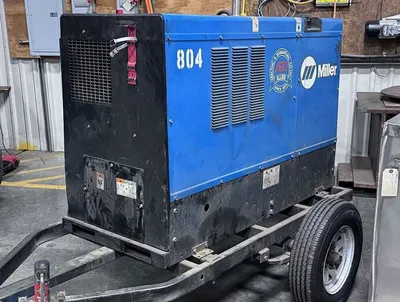

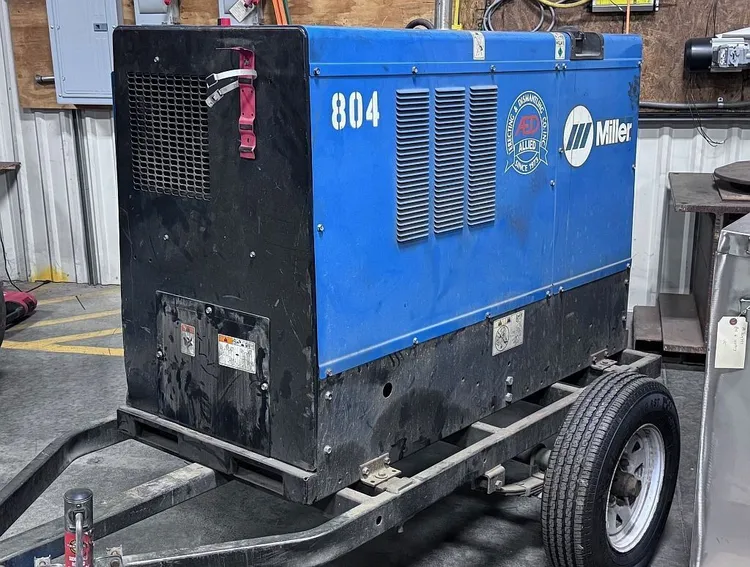

Miller Big Blue 500D welder available, offering a robust 500A output with 100% duty cycle. Features Deutz diesel engine, 25-gallon fuel capacity, and auxiliary power up to 27,000 peak watts. Ideal for demanding arc welding tasks. Weight: 1,750 lbs.
Welding Output & Amperage
• Maximum DC Output: 500 amps at 40 volts DC
• Weld Output Range: 20–500 amps
• Duty Cycle: 100% at 500 amps
• Maximum Open Circuit Voltage: 92 VDC
• Weld Modes: CC (Constant Current) and CV (Constant Voltage)
Physical Dimensions
• Width: 28.5 inches
• Height: 46 inches
• Length: 69.5 inches
• Weight: Approximately 1,750 lbs
Engine & Power Generation

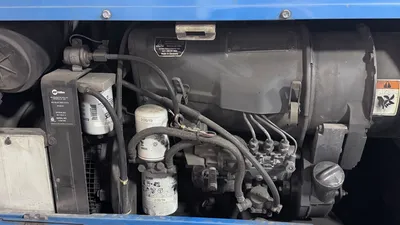

• Engine: Deutz F4L2011 diesel engine
• Fuel Capacity: 25 gallons
Auxiliary Power Output:
• Single-Phase: 12,000 continuous watts / 15,000 peak watts
• Three-Phase: 20,000 continuous watts / 27,000 peak watts
