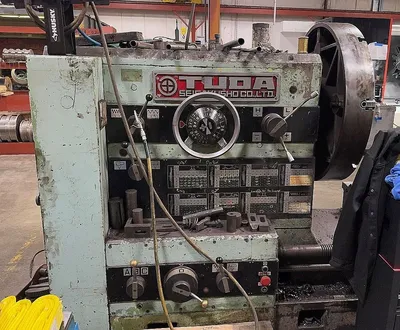

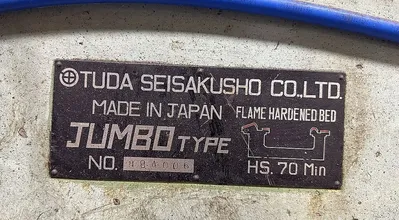

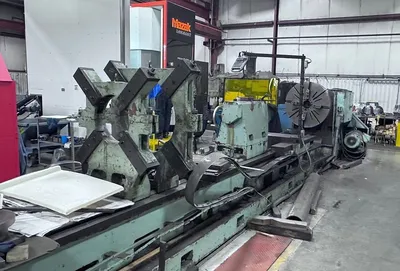

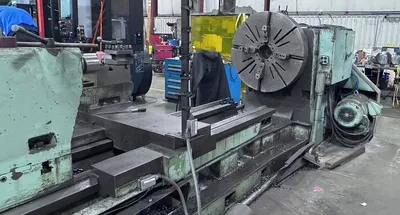

Used TUDA JUMBO 48" x 20' | LATHES, GAP, SLIDING BED
Have one to sell?
ConditionUsed
1 available
TUDA JUMBO 48" x 20' Lathe for sale, used condition. Features 48" swing, 65" gap swing, and 240" between centers. Powered by a 30 hp motor with RPM up to 590. Spindle bore is 3.2" with an A-11 Camlock taper. 30,000 lbs; 240"L x 72"W x 72"H.
Swing Over Bed: 48 inches
Swing Over Cross Slide: Approximately 36 inches
Swing in Gap: Approximately 65 inches
Distance Between Centers: 20 feet (240 inches)
Spindle Speeds: Typically 6 to 590 RPM, with 16 speed settings
Spindle Bore: Approximately 3.2 inches
Spindle Nose: A1-11 camlock
Spindle Motor: Approximately 30 HP
Voltage: Typically 230/460 V, 3-phase
Cycles: 60 Hz
Approximate Weight: Approximately 30,000 lbs
Approximate Dimensions: 240" L x 72" W x 72" H
